XRCLK10M000F1QA8J1-10.000MHz-8pF,XRCLK10M000F1QA8J1晶振,頻率10.000MHz,負載電容8pF,高可靠性晶振,5032mm晶振,數字通信設備晶振,四腳石英貼片晶振,智能手機晶振,平板電腦晶振,無線路由器晶振
XRCLK10M000F1QA8J1-10.000MHz-8pF
| 型號 | TSS-5032A |
| 頻率 | 10.0000MHz |
| 頻率公差 | ±10ppm max.(25±3℃) |
| 工作溫度范圍 | -30℃ to 85℃ |
| 頻率溫度特性 | ±15ppm max. |
| 頻率老化 | ±3ppm max./year |
| 清洗 | Notavailable |
| 負載電容量 | 8pF |
| 等效串聯電阻(max.) | 80Ω |
| 驅動電平(max.) | 60μW |
| 形狀 | SMD |

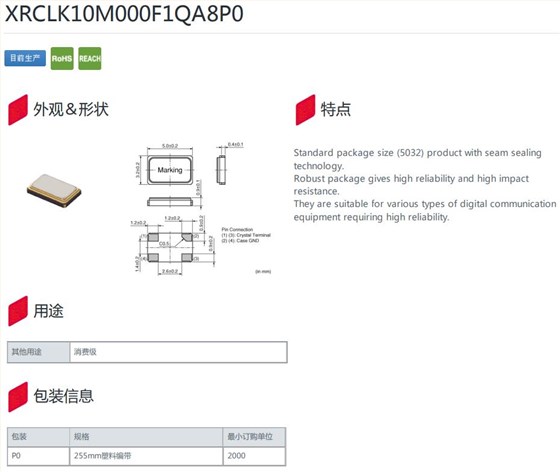

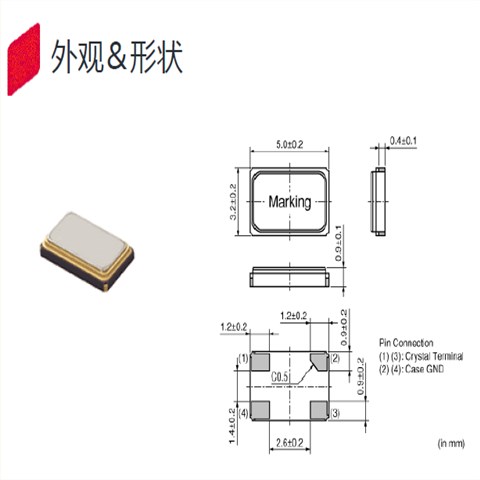

- ①標準包裝尺寸(5032)產品與接縫密封技術。
- ②堅固的封裝保證了高可靠性和高沖擊力阻力。
- ③適用于各種類型的數字通信和可靠性要求高的設備。
XRCLK10M000F1QA8J1-10.000MHz-8pF
| 原廠編碼 | 型號 | 頻率 | 頻率公差 | 頻率溫度特性 | 負載電容量 |
| XRCLK10M000F1QA8J1 | TSS-5032A | 10.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK11M000F1QA8P0 | TSS-5032A | 11.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK12M000F1QA6J1 | TSS-5032A | 12.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK13M000F1QA6P0 | TSS-5032A | 13.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK14M745F1QB6J1 | TSS-5032A | 14.7456MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK15M000F1QB6P0 | TSS-5032A | 15.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK16M000F1QA7J1 | TSS-5032A | 16.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK17M000F1QA7P0 | TSS-5032A | 17.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK21M250F1QA8J1 | TSS-5032A | 21.2500MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK18M250F1QA8P0 | TSS-5032A | 18.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK19M000F1QA0J1 | TSS-5032A | 19.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK20M000F1QA0J1 | TSS-5032A | 20.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK21M000F1QA0J1 | TSS-5032A | 21.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK22M000F1QA0J1 | TSS-5032A | 22.0000MHz | ±10ppm max | ±15ppm max. | 8pF |
| XRCLK23M000F1QA0J1 | TSS-5032A | 23.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK24M000F1QA0J1 | TSS-5032A | 24.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
| XRCLK52M000F1QA0P0 | TSS-5032A | 52.0000MHz | ±10ppm max. | ±15ppm max. | 8pF |
