NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移動通信晶振特點：

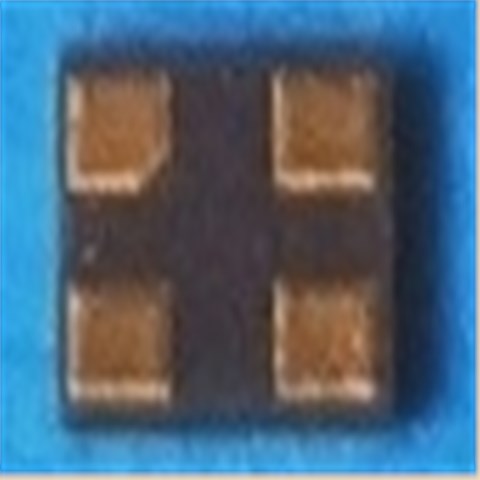

●微型包裝尺寸1.6 x 1.2 x 0.4mm與4個墊

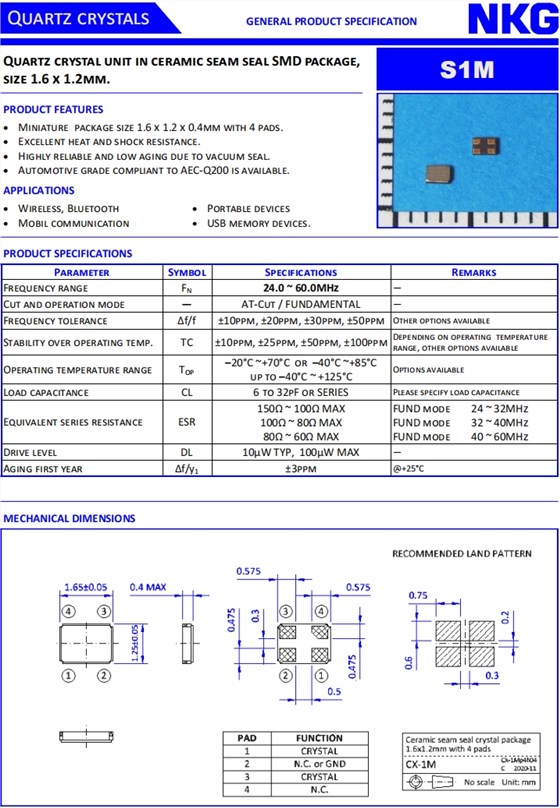

NKG Crystal,S1M24.0000F18E1Y-EXT,1612mm晶振,6G移動通信晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
24MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±15ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–20°C ~+70°C
Options available
Load capacitance
CL
18pF
Please specify load capacitance
Equivalent series resistance
ESR
150Ω ~ 100Ω MAX
FUND mode 24 ~ 32MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
