NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信設備晶振特點：

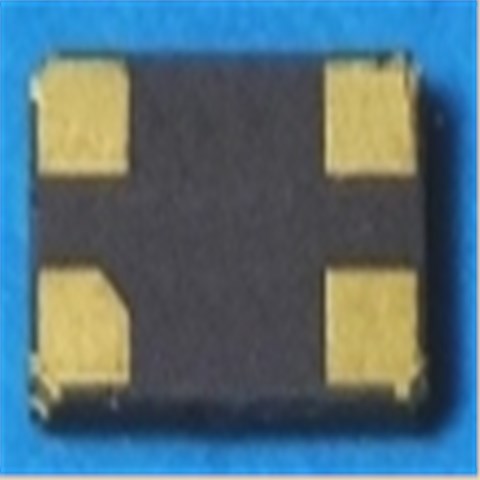

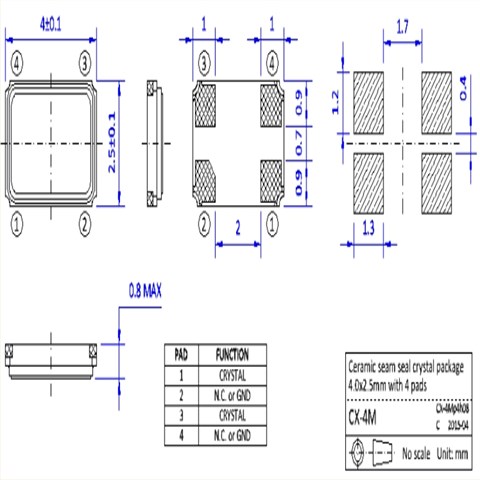

●微型包裝尺寸4.0 x 2.5x 0.7mm與4個墊
●優異的耐熱性和抗震性
●高可靠的縫封封裝，低老化
●符合AEC-Q200標準的汽車級產品可供選擇

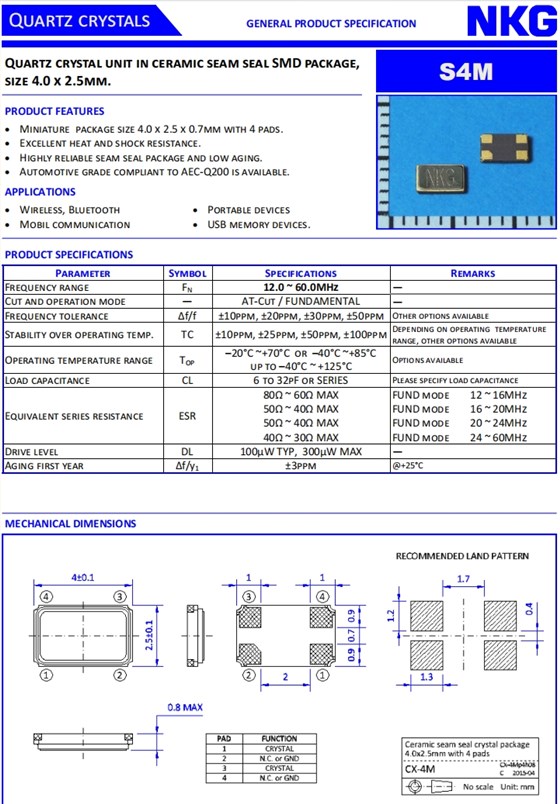

NKG晶振,S4M27.0000F16E1Y-EXT,4025mm晶振,6G通信設備晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
27MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±15ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–20°C ~+70°C
Options available
Load capacitance
CL
16pF
Please specify load capacitance
Equivalent series resistance
ESR
40Ω~30Ω MAX
FUND MODE 24~ 60MHz
Drive level
DL
100µW TYP, 300µW MAX
-
Aging first year
Δf/y1
±3ppm
@+25°C
