美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振

頻率：8MHZ

尺寸：13.3*4.7mm

美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振，ILSI晶振公司，外觀完全使用金屬材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的石英晶體諧振器,焊接方面支持表面貼裝,外觀采用金屬封裝,具有充分的密封性能,晶振本身能確保其高可靠性,采用編帶包裝,可對應產品應用到自動貼片機告訴安裝,滿足無鉛焊接的高溫回流溫度曲線要求.貼片晶振，HC49USM晶振，石英晶振，6G路由器晶振，無人機晶振，高品質晶振，低功耗晶振，智能穿戴設備晶振，北斗衛星晶振，無源晶振,二腳晶振。

訂購熱線：0755-27837162

美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振，ILSI晶振公司，外觀完全使用金屬材料封裝的,產品本身采用全自動石英晶體檢測儀,以及跌落,漏氣等苛刻實驗.產品本身具有高穩定性,高可靠性的石英晶體諧振器,焊接方面支持表面貼裝,外觀采用金屬封裝,具有充分的密封性能,晶振本身能確保其高可靠性,采用編帶包裝,可對應產品應用到自動貼片機告訴安裝,滿足無鉛焊接的高溫回流溫度曲線要求.貼片晶振，HC49USM晶振，石英晶振，6G路由器晶振，無人機晶振，高品質晶振，低功耗晶振，智能穿戴設備晶振，北斗衛星晶振，無源晶振,二腳晶振。

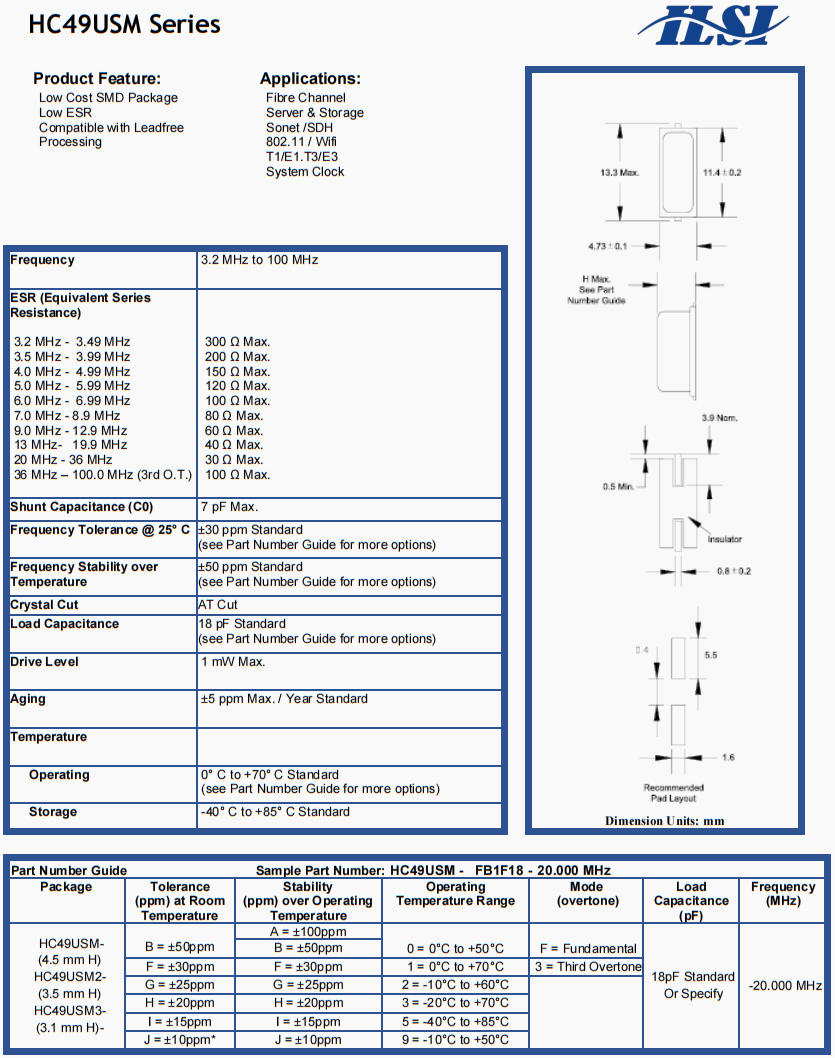

美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振

頻率	3.2 MHz to 100 MHz
分流電容	7 pF Max.
頻率容差	±30 ppm Standard(see Part Number Guide for more options)
溫度范圍內的頻率穩定度	±50 ppm Standard(see Part Number Guide for more options)
水晶切割	AT Cut
負載電容	18 pF Standard(see Part Number Guide for more options)
驅動電平	1 mW Max.
老化	±5 ppm Max. / Year Standard
工作溫度范圍	0° C to +70° C Standard(see Part Number Guide for more options)
儲存溫度范圍	-40 ° C to +85° C Standard

美國艾爾西晶振,遙遙領先的北斗衛星晶振,HC49USM-FF3F18-8.000MHZ晶振

原廠編碼	生產商品牌	型號	頻率	頻率穩定度	頻率容差	負載電容	工作溫度范圍
HC49US-FF3F18-8.000MHZ	ILSI	HC49US	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-8.000MHZ	ILSI	HC49USM	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-3.6864MHZ	ILSI	HC49USM	3.6864 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-4.0960MHZ	ILSI	HC49US	4.096 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-18.4320MHZ	ILSI	HC49USM	18.432 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF3F18-11.0592MHZ	ILSI	HC49USM	11.0592 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-7.3728MHZ	ILSI	HC49USM	7.3728 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-20.000MHZ	ILSI	HC49USM	20 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-14.7456MHZ	ILSI	HC49USM	14.7456 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-27.000MHZ	ILSI	HC49USM	27 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-16.000MHZ	ILSI	HC49USM	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-12.000MHZ	ILSI	HC49USM	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-16.000MHZ	ILSI	HC49US	16 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-20.000MHZ	ILSI	HC49US	20 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-10.000MHZ	ILSI	HC49US	10 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-24.000MHZ	ILSI	HC49US	24 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-12.000MHZ	ILSI	HC49US	12 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-25.000MHZ	ILSI	HC49US	25 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-11.0592MHZ	ILSI	HC49US	11.0592 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-4.9152MHZ	ILSI	HC49US	4.9152 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-25.000MHZ	ILSI	HC49US	25 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-4.0960MHZ	ILSI	HC49US	4.096 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-16.000MHZ	ILSI	HC49US	16 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-8.000MHZ	ILSI	HC49US	8 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-3.6864MHZ	ILSI	HC49US	3.6864 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-27.000MHZ	ILSI	HC49US	27 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-4.000MHZ	ILSI	HC49US	4 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-18.4320MHZ	ILSI	HC49US	18.432 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-14.31818MHZ	ILSI	HC49US	14.31818 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-7.3728MHZ	ILSI	HC49US	7.3728 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-14.31818MHZ	ILSI	HC49US	14.31818 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-10.000MHZ	ILSI	HC49US	10 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF3F18-10.000MHZ	ILSI	HC49USM	10 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-11.0592MHZ	ILSI	HC49USM	11.0592 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF3F18-6.000MHZ	ILSI	HC49USM	6 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-18.4320MHZ	ILSI	HC49USM	18.432 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-12.000MHZ	ILSI	HC49USM	12 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-25.000MHZ	ILSI	HC49USM	25 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-4.000MHZ	ILSI	HC49USM	4 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-3.6864MHZ	ILSI	HC49USM	3.6864 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-24.000MHZ	ILSI	HC49USM	24 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-4.000MHZ	ILSI	HC49USM	4 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-25.000MHZ	ILSI	HC49USM	25 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-27.000MHZ	ILSI	HC49US	27 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-6.000MHZ	ILSI	HC49US	6 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-7.3728MHZ	ILSI	HC49US	7.3728 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-6.1440MHZ	ILSI	HC49US	6.144 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-20.000MHZ	ILSI	HC49US	20 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-14.7456MHZ	ILSI	HC49US	14.7456 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-24.000MHZ	ILSI	HC49US	24 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF5F18-18.4320MHZ	ILSI	HC49US	18.432 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF3F18-4.9152MHZ	ILSI	HC49USM	4.9152 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF3F18-14.7456MHZ	ILSI	HC49USM	14.7456 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49USM-FF5F18-20.000MHZ	ILSI	HC49USM	20 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-10.000MHZ	ILSI	HC49USM	10 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-8.000MHZ	ILSI	HC49USM	8 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49USM-FF5F18-7.3728MHZ	ILSI	HC49USM	7.3728 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-4.9152MHZ	ILSI	HC49US	4.9152 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-11.0592MHZ	ILSI	HC49US	11.0592 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-14.7456MHZ	ILSI	HC49US	14.7456 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF5F18-12.000MHZ	ILSI	HC49US	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
HC49US-FF3F18-3.6864MHZ	ILSI	HC49US	3.6864 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-6.000MHZ	ILSI	HC49US	6 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
HC49US-FF3F18-4.000MHZ	ILSI	HC49US	4 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
