前言:關于愛普生晶振這個品牌已經是老生常談了,是金洛鑫電子主要供應的進口產品之一,在我司官網上有許多關于愛普生晶體和振蕩器相關的技術或產品文章,各位感興趣的可以關注金洛鑫電子的官方網站查看.
上個月エプソン水晶デバイス接連宣布了兩大產品方面最新進展,第一件是已經成功研發出兩款3.2×1.5mm的超低功耗32.768K晶體振蕩器系列,分別命名為SG-3031CM和SG-3031CMA.既然都是同一種封裝,料號也相似,那么這兩款石英晶振之間,到底有什么不同,請看接下來的分析.
內置32.768K晶體單元,無需調整即可高效運行;工作溫度-40°C至+105°C;使用CMOSIC可以減少電流消耗;VIO控制擺幅;應用領域:工業,安全,智能電表,計時和睡眠功能時鐘.

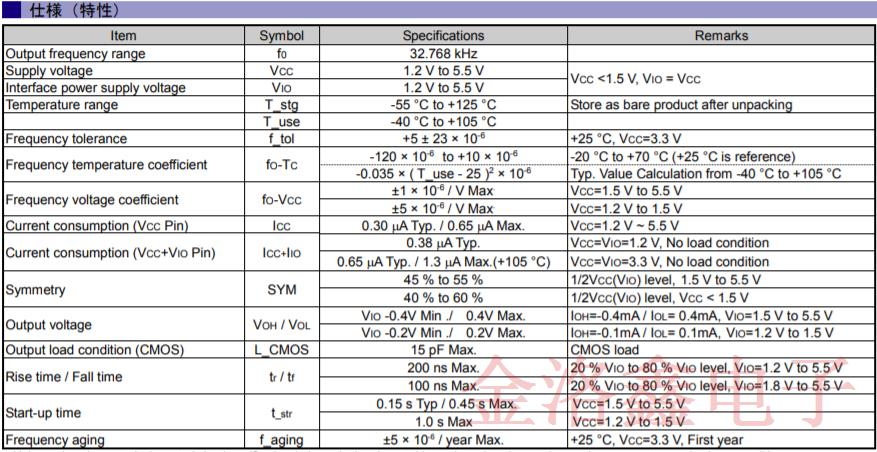

除非另有說明,否則上表中顯示的石英晶振特性(規格)基于額定工作溫度和電壓條件.

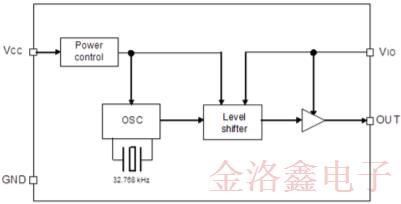

VIO是OUT輸出的電源引腳,也可以用作OE引腳.設置為禁用時,將VIO設置為0V.VCC是用于操作32.768kHz振蕩的電源引腳.可以通過最小化兩個電源的施加電壓來最小化功耗.但是,當VCC<1.5V時,VIO=VCC.

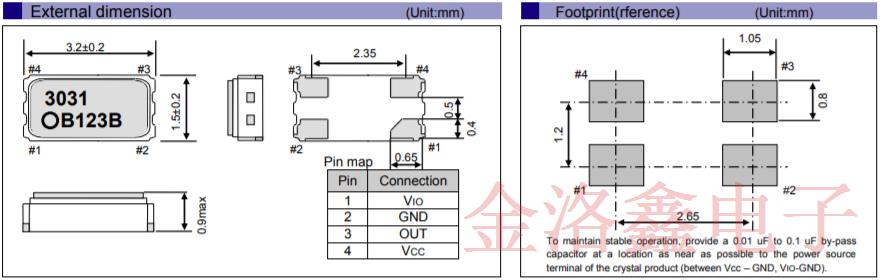

SG-3031CM/CMA封裝尺寸圖
1.具有優化的CMOSIC設計的
-低功耗-最大0.65uA的低功耗.*1
-1:Vcc=1.2V至5.5V,VIO=0.0V,T_use=+105℃
-電源電壓范圍從1.2V至5.5V
-Vio-PIN是接口電源電壓
2.寬溫度范圍最高可達105度
-SG-3031CMA和SG-3031CM石英晶振的工作溫度范圍最高為+105℃.
3.符合AEC-Q100標準

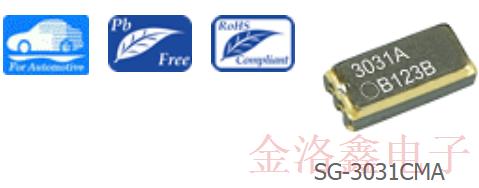

-SG-3031CMA符合AEC-Q100標準,適用于汽車應用.
4.附加價值主張
-內置的32.768kHz音叉晶體單元可在較寬的溫度范圍內提供穩定的頻率,而無需用戶進行調整.
-確保產品質量始終如一
-內部開發和制造晶體和IC-內部組裝和檢查晶體振蕩器
內置的32.768kHz石英晶振可實現無調整的高效運行;工作溫度-40°C至+105°C;使用CMOSIC可以減少電流消耗;VIO控制擺幅;符合AEC-Q100;應用領域:信息娛樂和通信設備,車身(ECU*),用于計時和睡眠功能的時鐘.ECU:電子控制單元.
除非另有說明,否則上表中顯示的特性(規格)基于額定工作溫度和電壓條件.

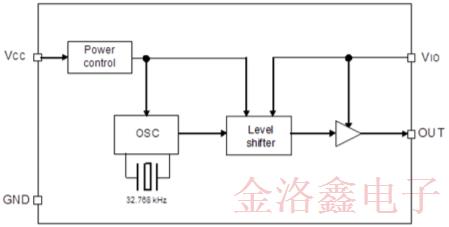

VIO是OUT輸出的電源引腳,也可以用作OE引腳.設置為禁用時,將VIO設置為0V.VCC是用于操作32.768kHz振蕩的電源引腳.可以通過最小化兩個電源的施加電壓來最小化功耗.但是,當VCC<1.5V時,VIO=VCC.
|
X1G0036410022 |
SG-211SEE晶振 |
38.400000MHz |
2.50x2.00x0.80mm |
|
X1G0036410023 |
SG-211SEE晶振 |
27.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410024 |
SG-211SEE晶振 |
38.400000MHz |
2.50x2.00x0.80mm |
|
X1G0036410025 |
SG-211SEE晶振 |
26.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410026 |
SG-211SEE晶振 |
50.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410027 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410028 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410030 |
SG-211SEE晶振 |
37.400000MHz |
2.50x2.00x0.80mm |
|
X1G0036410031 |
SG-211SEE晶振 |
12.288000MHz |
2.50x2.00x0.80mm |
|
X1G0036410032 |
SG-211SEE晶振 |
27.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410033 |
SG-211SEE晶振 |
27.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410034 |
SG-211SEE晶振 |
24.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410035 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410036 |
SG-211SEE晶振 |
4.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410037 |
SG-211SEE晶振 |
15.625000MHz |
2.50x2.00x0.80mm |
|
X1G0036410038 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410039 |
SG-211SEE晶振 |
24.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410041 |
SG-211SEE晶振 |
50.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410042 |
SG-211SEE晶振 |
25.000000MHz |
2.50x2.00x0.80mm |
|
X1G0036410043 |
SG-211SEE晶振 |
19.200000MHz |
2.50x2.00x0.80mm |
|
X1G0036410044 |
SG-211SEE晶振 |
37.125000MHz |
2.50x2.00x0.80mm |
|
X1G0036410045 |
SG-211SEE晶振 |
27.000000MHz |
2.50x2.00x0.80mm |
|
X1G0039310001 |
SG-210SCH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310004 |
SG-210SCH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310009 |
SG-210SCH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310011 |
SG-210SCH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310013 |
SG-210SCH晶振 |
150.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310014 |
SG-210SCH晶振 |
156.250000MHz |
2.50x2.00x0.90mm |
|
X1G0039310018 |
SG-210SCH晶振 |
106.250000MHz |
2.50x2.00x0.90mm |
|
X1G0039310024 |
SG-210SCH晶振 |
150.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310032 |
SG-210SCH晶振 |
133.333300MHz |
2.50x2.00x0.90mm |
|
X1G0039310033 |
SG-210SCH晶振 |
160.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039310039 |
SG-210SCH晶振 |
125.006250MHz |
2.50x2.00x0.90mm |
|
X1G0039310042 |
SG-210SCH晶振 |
114.285000MHz |
2.50x2.00x0.90mm |
|
X1G0039310043 |
SG-210SCH晶振 |
133.333000MHz |
2.50x2.00x0.90mm |
|
X1G0039310044 |
SG-210SCH晶振 |
133.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410001 |
SG-210SDH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410002 |
SG-210SDH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410003 |
SG-210SDH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410004 |
SG-210SDH晶振 |
133.333000MHz |
2.50x2.00x0.90mm |
|
X1G0039410008 |
SG-210SDH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410010 |
SG-210SDH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039410013 |
SG-210SDH晶振 |
156.250000MHz |
2.50x2.00x0.90mm |
|
X1G0039410014 |
SG-210SDH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510001 |
SG-210SEH晶振 |
125.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510002 |
SG-210SEH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510003 |
SG-210SEH晶振 |
133.333000MHz |
2.50x2.00x0.90mm |
|
X1G0039510004 |
SG-210SEH晶振 |
156.250000MHz |
2.50x2.00x0.90mm |
|
X1G0039510008 |
SG-210SEH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510009 |
SG-210SEH晶振 |
133.330000MHz |
2.50x2.00x0.90mm |
|
X1G0039510010 |
SG-210SEH晶振 |
145.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510011 |
SG-210SEH晶振 |
150.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510013 |
SG-210SEH晶振 |
100.000000MHz |
2.50x2.00x0.90mm |
|
X1G0039510014 |
SG-210SEH晶振 |
98.304000MHz |
2.50x2.00x0.90mm |
|
X1G0041710002 |
SG-210STF晶振 |
33.300000MHz |
2.50x2.00x0.90mm |
|
X1G0041710005 |
SG-210STF晶振 |
1.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710006 |
SG-210STF晶振 |
1.843200MHz |
2.50x2.00x0.90mm |
|
X1G0041710007 |
SG-210STF晶振 |
2.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710008 |
SG-210STF晶振 |
3.686400MHz |
2.50x2.00x0.90mm |
|
X1G0041710009 |
SG-210STF晶振 |
4.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710010 |
SG-210STF晶振 |
4.096000MHz |
2.50x2.00x0.90mm |
|
X1G0041710011 |
SG-210STF晶振 |
5.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710012 |
SG-210STF晶振 |
6.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710013 |
SG-210STF晶振 |
6.144000MHz |
2.50x2.00x0.90mm |
|
X1G0041710014 |
SG-210STF晶振 |
7.372800MHz |
2.50x2.00x0.90mm |
|
X1G0041710015 |
SG-210STF晶振 |
8.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710016 |
SG-210STF晶振 |
10.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710017 |
SG-210STF晶振 |
11.289600MHz |
2.50x2.00x0.90mm |
|
X1G0041710018 |
SG-210STF晶振 |
12.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710019 |
SG-210STF晶振 |
12.288000MHz |
2.50x2.00x0.90mm |
|
X1G0041710020 |
SG-210STF晶振 |
12.500000MHz |
2.50x2.00x0.90mm |
|
X1G0041710021 |
SG-210STF晶振 |
13.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710022 |
SG-210STF晶振 |
13.500000MHz |
2.50x2.00x0.90mm |
|
X1G0041710023 |
SG-210STF晶振 |
13.560000MHz |
2.50x2.00x0.90mm |
|
X1G0041710024 |
SG-210STF晶振 |
14.318180MHz |
2.50x2.00x0.90mm |
|
X1G0041710025 |
SG-210STF晶振 |
14.745600MHz |
2.50x2.00x0.90mm |
|
X1G0041710026 |
SG-210STF晶振 |
15.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710027 |
SG-210STF晶振 |
16.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710028 |
SG-210STF晶振 |
19.200000MHz |
2.50x2.00x0.90mm |
|
X1G0041710029 |
SG-210STF晶振 |
20.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710030 |
SG-210STF晶振 |
22.579200MHz |
2.50x2.00x0.90mm |
|
X1G0041710031 |
SG-210STF晶振 |
24.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710032 |
SG-210STF晶振 |
24.576000MHz |
2.50x2.00x0.90mm |
|
X1G0041710033 |
SG-210STF晶振 |
25.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710034 |
SG-210STF晶振 |
26.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710035 |
SG-210STF晶振 |
27.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710036 |
SG-210STF晶振 |
27.120000MHz |
2.50x2.00x0.90mm |
|
X1G0041710037 |
SG-210STF晶振 |
28.636360MHz |
2.50x2.00x0.90mm |
|
X1G0041710038 |
SG-210STF晶振 |
29.491200MHz |
2.50x2.00x0.90mm |
|
X1G0041710039 |
SG-210STF晶振 |
30.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710040 |
SG-210STF晶振 |
32.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710041 |
SG-210STF晶振 |
33.333000MHz |
2.50x2.00x0.90mm |
|
X1G0041710042 |
SG-210STF晶振 |
36.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710043 |
SG-210STF晶振 |
37.400000MHz |
2.50x2.00x0.90mm |
|
X1G0041710044 |
SG-210STF晶振 |
38.400000MHz |
2.50x2.00x0.90mm |
|
X1G0041710045 |
SG-210STF晶振 |
40.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710046 |
SG-210STF晶振 |
48.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710047 |
SG-210STF晶振 |
50.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710048 |
SG-210STF晶振 |
52.000000MHz |
2.50x2.00x0.90mm |
|
X1G0041710049 |
SG-210STF晶振 |
54.000000MHz |
2.50x2.00x0.90mm |
