Silicon品牌,536FB106M250DG,6G路由器差分晶振
頻率：106.25MHz
尺寸：7.0mm x 5.0mm
Silicon品牌,536FB106M250DG,6G路由器差分晶振,歐美進口晶振,Silicon晶振,Si536差分晶振,有源晶振,536FB106M250DG晶振,LVDS輸出晶振,貼片振蕩器,7050mm晶振,SMD晶振,頻率106.25MHz,電壓2.5V,頻率偏差20ppm,工作溫度-40~85°C,低功耗晶振,低電源電壓晶振,高性能晶振,6G路由器晶振,調制解調器晶振,導航設備晶振,存儲系統晶振.
訂購熱線：0755-27837162
Silicon品牌,536FB106M250DG,6G路由器差分晶振,歐美進口晶振,Silicon晶振,Si536差分晶振,有源晶振,536FB106M250DG晶振,LVDS輸出晶振,貼片振蕩器,7050mm晶振,SMD晶振,頻率106.25MHz,電壓2.5V,頻率偏差20ppm,工作溫度-40~85°C,低功耗晶振,低電源電壓晶振,高性能晶振,6G路由器晶振,調制解調器晶振,導航設備晶振,存儲系統晶振.

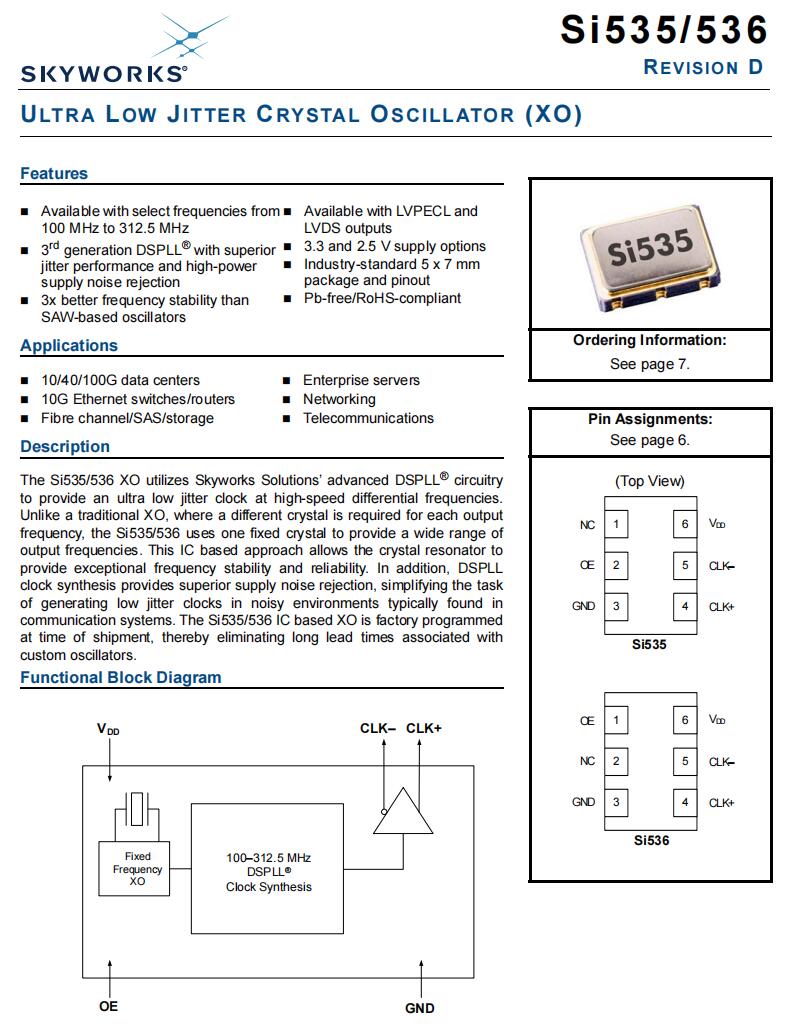

Silicon品牌,536FB106M250DG,6G路由器差分晶振特點：
-可選擇10MHz ~ 312.5MHz的任意頻率
-第三代DSPLL®具有優越的抖動性能和高電源噪聲抑制
-頻率穩定性優于SAW-based振蕩器
-3.3、2.5供電選項
-可與LVPECL和LVDS輸出
-行業標準的5 × 7 mm封裝和引腳
-無鉛，符合RoHS標準
Silicon品牌,536FB106M250DG,6G路由器差分晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
106.25MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
2.5V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±20ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
98mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
LVDS輸出選項
VO
1.275V Max
mid-level
VOD
0.9Vpp Max
swing (diff)
輸入電壓
VIH
0.75×VDD Min
VIL
0.5V Max
上升下降時間
tr/tf
350ps Max
LVDS
起始時間
t str
10ms Max
相位抖動
tpj
0.40ps Max
12 kHz to 20 MHz brickwall

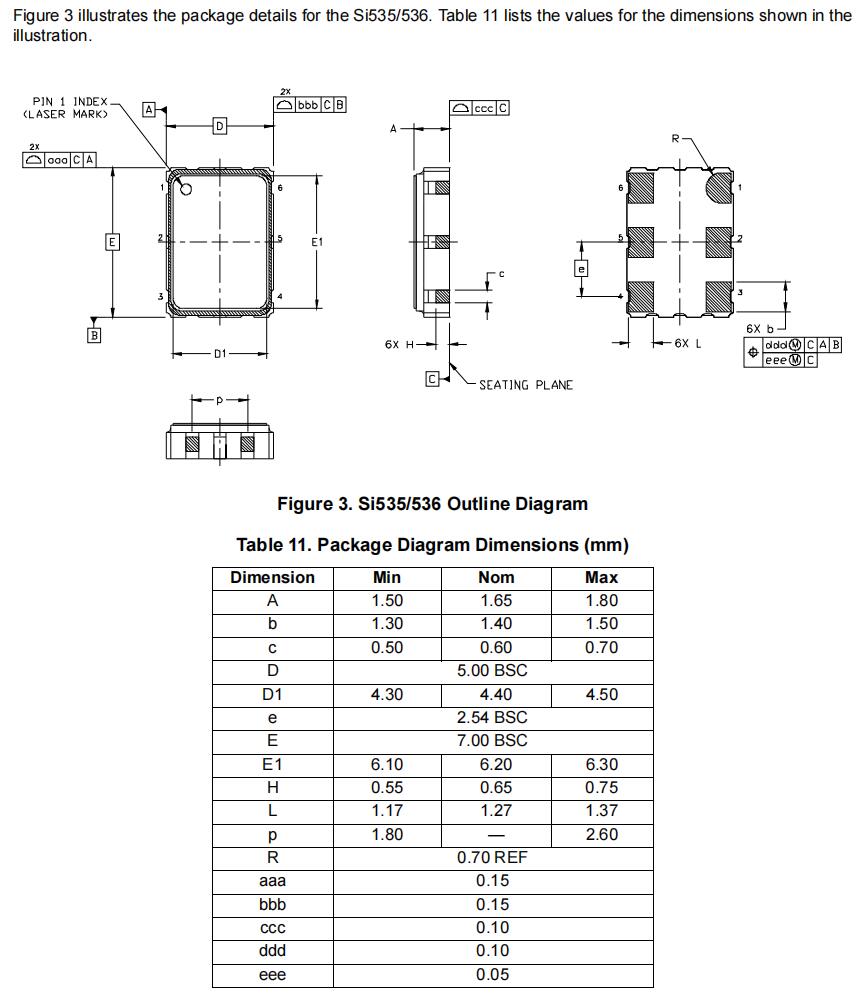

Silicon品牌,536FB106M250DG,6G路由器差分晶振尺寸圖
