Silicon品牌,510BBA156M250BAGR,6G千兆以太網晶振
頻率：156.25MHZ
尺寸：5.0×3.2mm
Silicon品牌,510BBA156M250BAGR,6G千兆以太網晶振,Silicon電子晶振,Si510進口晶體振蕩器,LVDS輸出差分晶振,510BBA156M250BAGR晶振,有源晶振,5032mm晶振,頻率156.25MHz,電壓3.3V,頻率偏差25ppm,工作溫度-40~85°C,低抖動晶振,低功耗晶振,無鉛環保晶振,6G千兆以太網晶振,存儲系統晶振,測試與測量設備晶振,FPGA/ASIC時鐘生成晶振.
訂購熱線：0755-27837162
Silicon品牌,510BBA156M250BAGR,6G千兆以太網晶振,Silicon電子晶振,Si510進口晶體振蕩器,LVDS輸出差分晶振,510BBA156M250BAGR晶振,有源晶振,5032mm晶振,頻率156.25MHz,電壓3.3V,頻率偏差25ppm,工作溫度-40~85°C,低抖動晶振,低功耗晶振,無鉛環保晶振,6G千兆以太網晶振,存儲系統晶振,測試與測量設備晶振,FPGA/ASIC時鐘生成晶振.
Silicon品牌,510BBA156M250BAGR,6G千兆以太網晶振特點：
-支持100KHz ~ 250MHz的任意頻率
-低抖動操作
-2 - 4周的交貨期
-總穩定性包括10年老化
-全面的生產測試覆蓋范圍包括晶體ESR和DLD
-片上LDO穩壓器，用于電源噪聲濾波
-3.3、2.5或1.8 V操作
-差分(LVPECL, LVDS, HCSL)或CMOS輸出選項
-可選集成1:2 CMOS扇出緩沖器
-在OE和電源上進行微弱抑制
-行業標準5 × 7、3.2 × 5和2.5 × 3.2 mm封裝
-無鉛，符合RoHS標準
-工作溫度-40至85℃操作
Silicon品牌,510BBA156M250BAGR,6G千兆以太網晶振規格表
項目
符號
規格說明
條件
額定頻率
f_nom
156.25MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +85℃
頻率穩定性
f_tol
±50ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
電源電流
IDD
23mA Max
LVDS
對稱性（占空比）
SYM
45%~55%
在輸出交叉點
輸出電壓
VOC
1.33V Max
LVDS
VO
0.45VPPSE Max
輸入電壓
VIH
0.8×VDD Min
VIL
0.2×VDD Max
上升下降時間
tr/tf
800ps Max
LVDS
起始時間
t str
10ms Max
相位抖動
tpj
1.0ps Max
12 kHz to 20 MHz integration band-width2 (brickwall)

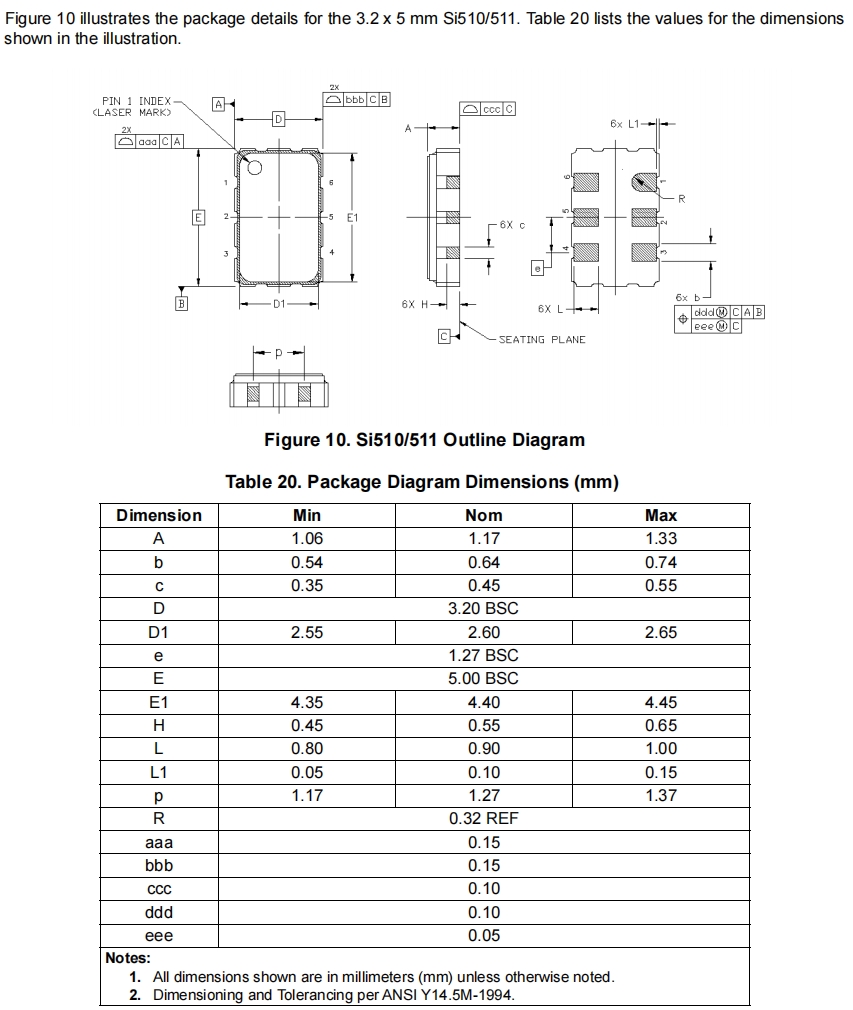

Silicon品牌,510BBA156M250BAGR,6G千兆以太網晶振尺寸圖
| 原廠代碼 | 品牌 | 型號 | 頻率 | 電壓 | 頻率穩定度 | 尺寸 |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA125M000BAG | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA100M000AAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000BAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000BAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000AAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA200M000BAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA200M000AAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA25M0000BAG | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FCA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BCA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA200M000BAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA125M000BAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000BAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000AAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510DBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA200M000BAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA200M000AAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510EBA125M000AAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ACA47M2500AAG | Silicon Labs | Si510 | 47.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511SAA100M000AAG | Silicon Labs | Si511 | 100MHz | 1.8V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BCA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA125M000AAG | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA125M000BAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA100M000BAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA125M000AAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000AAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA100M000BAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000AAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA200M000AAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA200M000AAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA200M000AAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510CBA25M0000BAG | Silicon Labs | Si510 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511SBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 1.8V | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA100M000BAGR | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA125M000BAGR | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA100M000BAGR | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA125M000BAGR | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000BAGR | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA125M000BAGR | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000BAGR | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA125M000BAGR | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA100M000BAGR | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000BAGR | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA100M000BAGR | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA125M000BAGR | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA106M250BAGR | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA106M250BAGR | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA106M250BAGR | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA106M250BAGR | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA106M250BAGR | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA000149BAGR | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA74M2500BAGR | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000149BAGR | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA74M2500BAGR | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149BAGR | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA74M2500BAGR | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000149BAGR | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA74M2500BAGR | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA000149BAGR | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA74M2500BAGR | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000149BAGR | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA74M2500BAGR | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA100M000AAGR | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA125M000AAGR | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA100M000AAGR | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA125M000AAGR | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA100M000AAGR | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA125M000AAGR | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA100M000AAGR | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA125M000AAGR | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA100M000AAGR | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA125M000AAGR | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000AAGR | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA125M000AAGR | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA106M250AAGR | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA106M250AAGR | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA106M250AAGR | Silicon Labs | Si510 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA106M250AAGR | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA106M250AAGR | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA106M250AAGR | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149AAGR | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA74M2500AAGR | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000149AAGR | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500AAGR | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA000149AAGR | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA74M2500AAGR | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000149AAGR | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500AAGR | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000149AAGR | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA74M2500AAGR | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000149AAGR | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA74M2500AAGR | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250BAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250BAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA156M250BAGR | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA155M520BAGR | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520BAGR | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520BAGR | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA155M520BAGR | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA155M520BAGR | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA148M500BAGR | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA155M520BAGR | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA000110BAGR | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA148M500BAGR | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000110BAGR | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA148M500BAGR | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000110BAGR | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA148M500BAGR | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000110BAGR | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA148M500BAGR | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA000110BAGR | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA148M500BAGR | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000110BAGR | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA156M250AAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA156M250AAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA156M250AAGR | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520AAGR | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA155M520AAGR | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA155M520AAGR | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA155M520AAGR | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA155M520AAGR | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA155M520AAGR | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000110AAGR | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500AAGR | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000110AAGR | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA148M500AAGR | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA000110AAGR | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA148M500AAGR | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000110AAGR | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA148M500AAGR | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110AAGR | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA148M500AAGR | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000110AAGR | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500AAGR | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA25M0000BAGR | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA200M000BAGR | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA200M000BAGR | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA200M000BAGR | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA200M000BAGR | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA200M000BAGR | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA200M000BAGR | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500BAGR | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA212M500BAGR | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA212M500BAGR | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA212M500BAGR | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA212M500BAGR | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500BAGR | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA200M000AAGR | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA200M000AAGR | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA200M000AAGR | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA200M000AAGR | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000AAGR | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA200M000AAGR | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA212M500AAGR | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500AAGR | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500AAGR | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA212M500AAGR | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA212M500AAGR | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA212M500AAGR | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511SAA20M0000AAG | Silicon Labs | Si511 | 20MHz | 1.8V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA150M000BAG | Silicon Labs | Si510 | 150MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BCB125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA154M875AAG | Silicon Labs | Si510 | 154.875MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA157M625AAG | Silicon Labs | Si510 | 157.625MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA25M0000AAG | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511JBA125M000AAG | Silicon Labs | Si511 | 125MHz | 1.8V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510KCA100M000BAG | Silicon Labs | Si510 | 100MHz | 1.8V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
公司名：深圳市金洛鑫電子有限公司
聯系人：茹紅青
手機：13510569637
電話：0755-27837162
QQ號：657116624
微信公眾號：CITIZENCRYSTAL
搜狐公眾號：晶振石英晶振NDK晶振
郵箱：jinluodz@163.com
地址：深圳市寶安區41區甲岸路19號
相關的產品 / Related Products
- 32.768K振蕩器,進口CMOS晶振,SM22K有源晶振,Pletronics晶振,SM2220KC-32.768K晶體
- 32.768K振蕩器,進口CMOS晶振,SM22K有源晶振,Pletronics晶振,SM2220KC-32.768K晶體 SM2220KC - 32.768K晶體作為Pletronics出品的進口CMOS晶振，以32.768KHz的精準頻率，為各類電子設備提供穩定的時鐘信號。這款晶振采用高品質材料與先進制造工藝，確保在 - 40℃至 + 85℃的寬溫度范圍內，頻率穩定性極佳，頻率偏差能被嚴格控制在極小范圍。其有源振蕩器設計，內部集成振蕩電路，無需復雜外部電路即可快速穩定地輸出時鐘信號。CMOS輸出特性使其能與數字電路良好適配，廣泛應用于對時鐘精度要求高的實時時鐘模塊，為設備提供精確計時，是智能手表、電子日歷等產品穩定運行的可靠保障。
- 低抖動石英振蕩器,PE77J貼片晶振,Pletronics振蕩器,PE7720JEW-100.0MDK,PECL輸出晶振
- 低抖動石英振蕩器,PE77J貼片晶振,Pletronics振蕩器,PE7720JEW-100.0MDK,PECL輸出晶振 PE7720JEW-100.0MDK 是 Pletronics 旗下的 PE77J 貼片晶振，屬于低抖動石英振蕩器，采用 PECL 輸出。它可輸出精準的 100.0MHz 頻率，為電子設備提供穩定的時鐘信號。基于石英材料，具備良好的頻率穩定性。低抖動特性有效提高信號質量，降低誤碼率。PECL 輸出適合高速數據處理，貼片封裝便于安裝和集成。廣泛應用于通信、網絡、高性能計算等領域，有助于提升設備的性能和可靠性，是追求高精度時鐘信號的理想選擇。
- 3225貼片晶振,SM44J振蕩器,CMOS輸出晶振,普銳特晶振,SM4445JEV-8.192MDK
- 3225貼片晶振,SM44J振蕩器,CMOS輸出晶振,普銳特晶振,SM4445JEV-8.192MDK SM4445JEV-8.192MDK 是普銳特生產的 3225 貼片晶振，屬于 SM44J 振蕩器，采用 CMOS 輸出。它可輸出精準的 8.192MHz 頻率，為電子設備提供穩定的時鐘基準。CMOS 輸出方式具備低功耗、高噪聲容限的特點，能與多種電路適配，降低設備能耗和干擾。3225 貼片封裝便于安裝和集成。廣泛應用于消費電子、工業控制、通信等領域，有助于提升設備的性能和穩定性，是電子設計中的可靠選擇。
JLX-PD
金洛鑫產品系列
PRODUCT LINE
石英晶振
QuartzCrystal
- KDS晶振
- 愛普生晶振
- NDK晶振
- 京瓷晶振
- 精工晶振
- 西鐵城晶振
- 大河晶振
- 村田晶振
- 泰藝晶振
- TXC晶振
- 鴻星晶振
- 希華晶振
- 加高晶振
- 百利通亞陶晶振
- 嘉碩晶振
- 津綻晶振
- 瑪居禮晶振
- 富士晶振
- SMI晶振
- Lihom晶振
- SHINSUNG晶振
- NAKA晶振
- AKER晶振
- NKG晶振
- NJR晶振
- Sunny晶振
貼片晶振
SMDcrystal
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康納溫菲爾德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 維管晶振
- ECScrystal晶振
- 日蝕晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- Fox晶振
- Frequency晶振
- GEYER晶振
- KVG晶振
- ILSI晶振
- Mmdcomp晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- Quarztechnik晶振
- Suntsu晶振
- Transko晶振
- Wi2Wi晶振
- ITTI晶振
- Oscilent晶振
- ACT晶振
- Rubyquartz晶振
- MTI-milliren晶振
- PDI晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Anderson晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- ARGO晶振
- 瑞薩renesas晶振
- Skyworks晶振
諧振器濾波器
Resonator
溫補晶振
TCXOcrystal
32.768K
32768Kcrystal
霧化片
AtomizationPiece
智能穿戴
車載安防
通訊網絡
智能玩具
金洛鑫聯系方式
