當前位置：首頁 » 石英晶振 » 希華晶振 » SIWARD晶振,3215石英晶振,XTL721-S999-301,6G通信晶振

prevnext

SIWARD晶振,3215石英晶振,XTL721-S999-301,6G通信晶振

頻率：32.768KHZ

尺寸：3.2x 1.5mm

SIWARD晶振,3215石英晶振,XTL721-S999-301,6G通信晶振,SIWARD晶振,臺灣進口晶振,XTL72音叉振蕩子,XTL721-S999-301晶振,3215石英晶振,SMD晶體,32.768KHz晶振,負載9pf,工作溫度-40~85°C,頻率穩定性20ppm,高品質晶振,低老化晶振,6G通信設備晶振,測試與測量儀器晶振,智能家居晶振,數碼相機晶振.

訂購熱線：0755-27837162

SIWARD晶振,3215石英晶振,XTL721-S999-301,6G通信晶振,SIWARD晶振,臺灣進口晶振,XTL72音叉振蕩子,XTL721-S999-301晶振,3215石英晶振,SMD晶體,32.768KHz晶振,負載9pf,工作溫度-40~85°C,頻率穩定性20ppm,高品質晶振,低老化晶振,6G通信設備晶振,測試與測量儀器晶振,智能家居晶振,數碼相機晶振.

SIWARD晶振,3215石英晶振,XTL721-S999-301,6G通信晶振特點 :

■封裝尺寸（3.2×1.5× 0.9)
■可靠性高，采用真空密封
■帶包裝，回流兼容

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

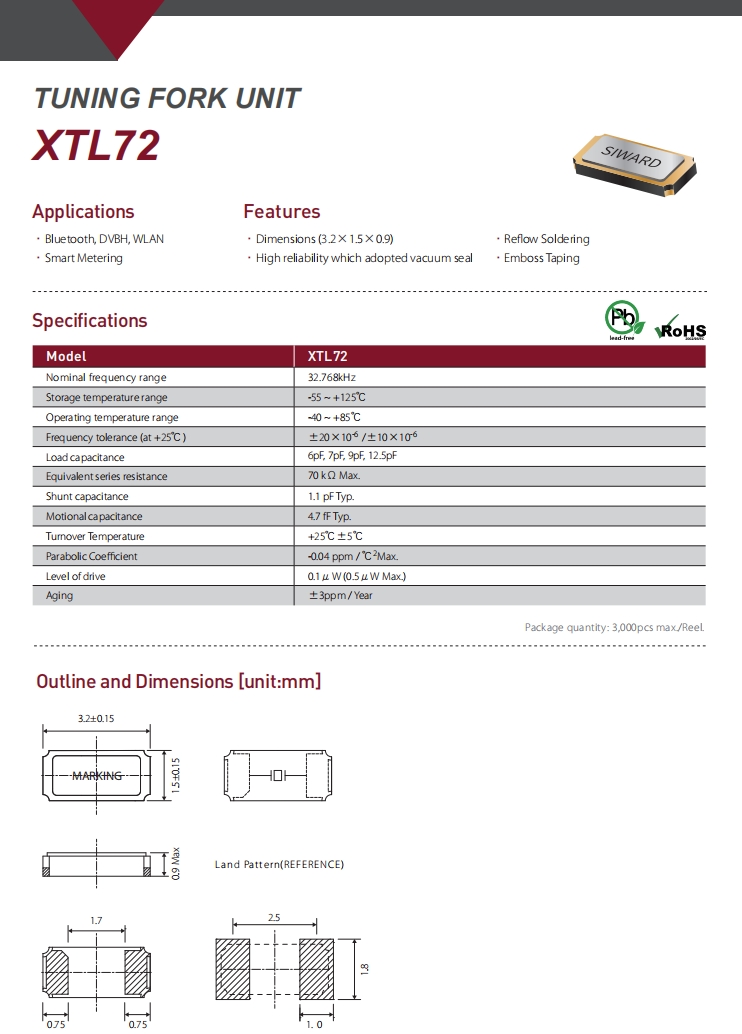

SIWARD晶振,3215石英晶振,XTL721-S999-301,6G通信晶振參數

項目	符號	XTL72
頻率	f0	32.768KHz
頻率公差	△ f/f0	±20ppm
并聯電容	Co	1.1pF Typ
負載電容	CL	9pf
工作溫度	TOPR	－40℃～＋85℃
保存溫度	TSTR	－40℃～＋125℃
串聯阻力	R1	70KΩ Max.
驅動級別	DL	0.5μW Max
老化	f_aging	±3ppm/year

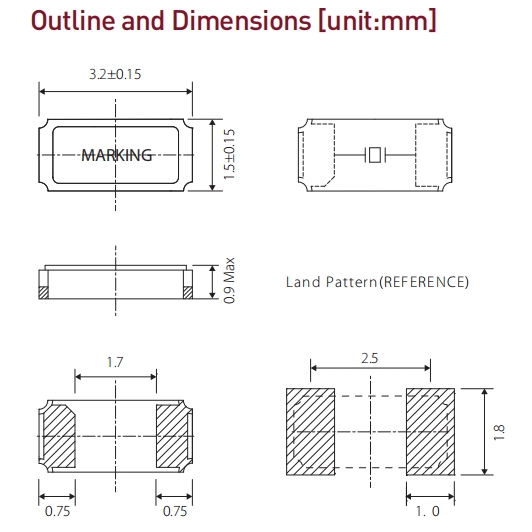

SIWARD晶振,3215石英晶振,XTL721-S999-301,6G通信晶振尺寸圖

SIWARD原廠編碼	生產商品牌	型號	頻率	頻率偏差度	負載電荷	工作溫度	尺寸
XTL721-Q23-048	Siward晶振	XTL72	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
XTL721-S349-005	Siward晶振	XTL72	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
XTL721-S999-301	Siward晶振	XTL72	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
XTL721-S999-429	Siward晶振	XTL72	32.768 kHz	±20ppm	6pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
XTL741-S999-319	Siward晶振	XTL74	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C	0.079" L x 0.047" W (2.00mm x 1.20mm)
XTL741-U11-402	Siward晶振	XTL74	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C	0.079" L x 0.047" W (2.00mm x 1.20mm)
XTL741-S999-298	Siward晶振	XTL74	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.079" L x 0.047" W (2.00mm x 1.20mm)
XTL741-S999-379	Siward晶振	XTL74	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C	0.079" L x 0.047" W (2.00mm x 1.20mm)
XTL741-S999-327	Siward晶振	XTL74	32.768 kHz	±20ppm	4pF	-40°C ~ 85°C	0.079" L x 0.047" W (2.00mm x 1.20mm)
XTL721-S999-286	Siward晶振	XTL72	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
XTL751-S999-544	Siward晶振	XTL75	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.063" L x 0.039" W (1.60mm x 1.00mm)
XTL751-S999-548	Siward晶振	XTL75	32.768 kHz	±20ppm	9pF	-40°C ~ 85°C	0.063" L x 0.039" W (1.60mm x 1.00mm)
XTL751-S999-420	Siward晶振	XTL75	32.768 kHz	±20ppm	7pF	-40°C ~ 85°C	0.063" L x 0.039" W (1.60mm x 1.00mm)
CGX70502-13.800-G108	Siward晶振	CGX-70502	13.8 MHz	±50ppm	16pF	-10°C ~ 60°C	7.0mm x 5.0mm
CGX70502-14.050-G109	Siward晶振	CGX-70502	14.05 MHz	±50ppm	16pF	-10°C ~ 60°C	7.0mm x 5.0mm
CGX70502-14.800-H134	Siward晶振	CGX-70502	14.8 MHz	±50ppm	16pF	-10°C ~ 60°C	7.0mm x 5.0mm
CGX70502-15.425-H135	Siward晶振	CGX-70502	15.425 MHz	±50ppm	16pF	-10°C ~ 60°C	7.0mm x 5.0mm
CGX70502-15.925-H136	Siward晶振	CGX-70502	15.925 MHz	±50ppm	16pF	-10°C ~ 60°C	7.0mm x 5.0mm
CGX70502-16.300-H137	Siward晶振	CGX-70502	16.3 MHz	±50ppm	16pF	-10°C ~ 60°C	7.0mm x 5.0mm
XTL581100-J96-011	Siward晶振	SX-2520	16 MHz	±10ppm	8pF	-20 ℃~70 ℃	2.5mm x 2.0mm
XTL571200-K114-002	Siward晶振	SX-3225	12 MHz	±10ppm	10pF	-40°C ~ 85°C	3.2mm x 2.5mm
XTL571150-F98-063	Siward晶振	SX-3225	24 MHz	±15ppm	18pF	-20 ℃~70 ℃	3.2mm x 2.5mm
XTL571100-H201-493	Siward晶振	SX-3225	25 MHz	±10ppm	12pF	-20 ℃~70 ℃	3.2mm x 2.5mm
XTL541200-C282-030	Siward晶振	SX-5032	8 MHz	±20ppm	20pF	-40°C ~ 85°C	5.0mm x 3.2mm
XTL5A1100-M118-056	Siward晶振	SXT-2520	26 MHz	±10ppm	7pF	-30°C ~ 85°C	2.5mm x 2.0mm
XTL5A1100-M118-132	Siward晶振	SXT-2520	26 MHz	±10ppm	7pF	-30°C ~ 105°C	2.5mm x 2.0mm
XTL5A1100-S362-009	Siward晶振	SXT-2520	26 MHz	±10ppm	9pF	-30°C ~ 85°C	2.5mm x 2.0mm
XTL55S16-S208-018TR4	Siward晶振	SX-4025	16 MHz	±10ppm	9pF	-20 ℃~75 ℃	4.0mm x 2.5mm
XTL721-G78-1609	Siward晶振	CSF-3215	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
XTL741-R53-039	Siward晶振	SF-2012	32 kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.079" L x 0.047" W (2.00mm x 1.20mm)
XTL741-S999-321	Siward晶振	SF-2012	32.768 kHz	±20ppm	12.5pF	-40°C ~ 85°C	0.079" L x 0.047" W (2.00mm x 1.20mm)
XTL501100-F98-044	Siward晶振	SX-2016	24 MHz	±10ppm	8pF	20 ℃~75 ℃	2.0mm x 1.6mm
XTL501100-S413-007	Siward晶振	SX-2016	32 MHz	±10ppm	9pF	-20 ℃~75 ℃	2.0mm x 1.6mm
XTL541200-C282-030	Siward晶振	SX-5032	8 MHz	±20ppm	20pF	-40°C ~ 85°C	5.0mm x 3.2mm
XTL571100-C249-064	Siward晶振	SX-3225	37.4 MHz	±10ppm	10pF	-10°C ~ 70°C	3.2mm x 2.5mm
XTL571100-F98-020	Siward晶振	SX-3225	12 MHz	±10ppm	10pF	-20 ℃~70 ℃	3.2mm x 2.5mm
XTL571100-H201-493	Siward晶振	SX-3225	25 MHz	±10ppm	12pF	-20 ℃~70 ℃	3.2mm x 2.5mm
XTL571100-M118-048	Siward晶振	SX-3225	26 MHz	±10ppm	7.3pF	-20 ℃~75 ℃	3.2mm x 2.5mm
XTL571100-N98-008	Siward晶振	SX-3225	25 MHz	±10ppm	20pF	-20 ℃~75 ℃	3.2mm x 2.5mm
XTL571150-F98-063	Siward晶振	SX-3225	24 MHz	±15ppm	18pF	-20 ℃~75 ℃	3.2mm x 2.5mm
XTL571150-G47-219	Siward晶振	SX-3225	25 MHz	±10ppm	18pF	-40°C ~ 85°C	3.2mm x 2.5mm
XTL571150-M118-070	Siward晶振	SX-3225	40 MHz	±7ppm	13pF	-40°C ~ 85°C	3.2mm x 2.5mm
XTL571200-H201-177	Siward晶振	SX-3225	32 MHz	±10ppm	9pF	-40°C ~ 85°C	3.2mm x 2.5mm
XTL571200-V42-001	Siward晶振	SX-3225	12 MHz	±20ppm	20pF	-10°C ~ 70°C	3.2mm x 2.5mm
XTL571300-U11-279	Siward晶振	SX-3225	12 MHz	±30ppm	12pF	-40°C ~ 85°C	3.2mm x 2.5mm
XTL581100-J96-011	Siward晶振	SX-2520	16 MHz	±10ppm	8pF	-20 ℃~70 ℃	2.5mm x 2.0mm
XTL581100-M171-008	Siward晶振	SX-2520	38.4 MHz	±10ppm	10pF	-30°C ~ 85°C	2.5mm x 2.0mm
XTL581200-G47-319	Siward晶振	SX-2520	12 MHz	±10ppm	10pF	-40°C ~ 85°C	2.5mm x 2.0mm
XTL581150-G47-223	Siward晶振	SX-2520	40 MHz	±10ppm	12pF	-30°C ~ 85°C	2.5mm x 2.0mm
XTL501300-A292-004	Siward晶振	SX-2016	16 MHz	±20ppm	9pF	-40°C ~ 85°C	2.0mm x 1.6mm
