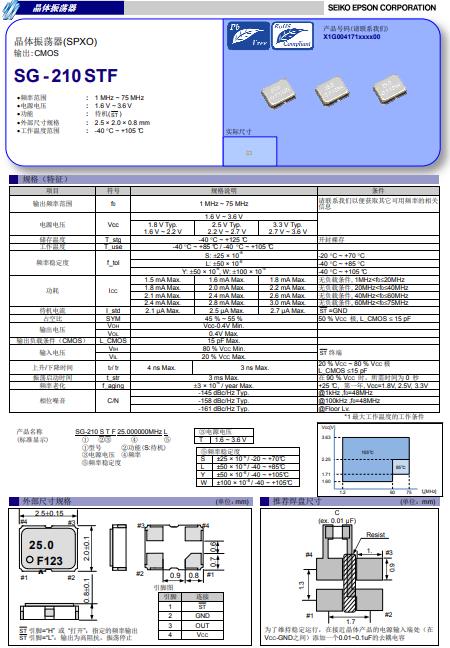

SG-210STF 25.000000MHz L,2520mm,25MHz,50ppm

頻率：25MHZ

尺寸：2.5mm×2.0mm

SG-210STF 25.000000MHz L,2520mm,25MHz,50ppm ,SG-210STF 25.000000MHz L,尺寸2520mm,頻率25MHz,精度50ppm,電壓1.6~3.6V,,工作溫度-40~85℃,數字通信設備晶振,無線模塊晶振,工業設備晶振.

訂購熱線：0755-27837162

EPSON-1

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

SG-210STF 25.000000MHz L,2520mm,25MHz,50ppm

愛普生晶振規格	SG-210STF晶振	石英晶振基本條件
標準頻率	25MHz	標準頻率，可提供其他頻率
儲存溫度	-40℃~+125℃	裸存
工作溫度	-40℃~+85℃	標準溫度
上升(Tr) /下降(Tf)時間	3 ns Max.
頻率穩定度	±50ppm	+25°C 對于超出標準的規格說明, 請聯系我們以便獲取相關的信息,http://www.zrwej.cn/
啟動時間	3 ms Max.	超出標準的規格請聯系我們.
輸出負載	15pF	超出標準說明,請聯系我們.
輸出方式	CMOS
電源電流	1.8mA Max.
電源電壓	1.6~3.6V
頻率老化	±3×10-6/year Max.	+25°C,第一年

SG-210STF 25.000000MHz L,2520mm,25MHz,50ppm

編碼	Model/型號	Frequency/頻率	LxWxH/尺寸	Output Wave/輸出方式	Supply Voltage/電源電壓	Ope Temperature/工作溫度
X1G0039510014	SG-210SEH	98.304000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.620 to 1.890 V	-40 to 85 °C
X1G0041710002	SG-210STF	33.300000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710005	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710006	SG-210STF	1.843200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710007	SG-210STF	2.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710008	SG-210STF	3.686400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710009	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710010	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710011	SG-210STF	5.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710012	SG-210STF	6.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710013	SG-210STF	6.144000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710014	SG-210STF	7.372800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710015	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710016	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710017	SG-210STF	11.289600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710018	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710019	SG-210STF	12.288000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710020	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710021	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710022	SG-210STF	13.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710023	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710024	SG-210STF	14.318180 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710025	SG-210STF	14.745600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710026	SG-210STF	15.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710027	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710028	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710029	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710030	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710031	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710032	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710033	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710034	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710035	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710036	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710037	SG-210STF	28.636360 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710038	SG-210STF	29.491200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710039	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710040	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710041	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710042	SG-210STF	36.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710043	SG-210STF	37.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710044	SG-210STF	38.400000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710045	SG-210STF	40.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710046	SG-210STF	48.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710047	SG-210STF	50.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710048	SG-210STF	52.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710049	SG-210STF	54.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
X1G0041710052	SG-210STF	8.192000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	1.600 to 3.600 V	-40 to 85 °C
