AB15T-32.768KHZ-T-Abracon進口晶振-小體積圓柱插件晶振
頻率：32.768KHz
尺寸：5.1mm x 1.5mm
AB15T-32.768KHZ-T-Abracon進口晶振-小體積圓柱插件晶振,AB15T-32.768KHZ-T晶振,Abracon進口晶振,歐美晶振,小體積圓柱插件晶振,32.768KHz晶振,石英晶體諧振器,耐高溫晶振,實時時鐘晶振,測量儀器設備晶振,通信設備晶振,無線網絡晶振.
訂購熱線：0755-27837162
AB15T-32.768KHZ-T-Abracon進口晶振-小體積圓柱插件晶振,AB15T-32.768KHZ-T晶振,Abracon進口晶振,歐美晶振,小體積圓柱插件晶振,32.768KHz晶振,石英晶體諧振器,耐高溫晶振,實時時鐘晶振,測量儀器設備晶振,通信設備晶振,無線網絡晶振.

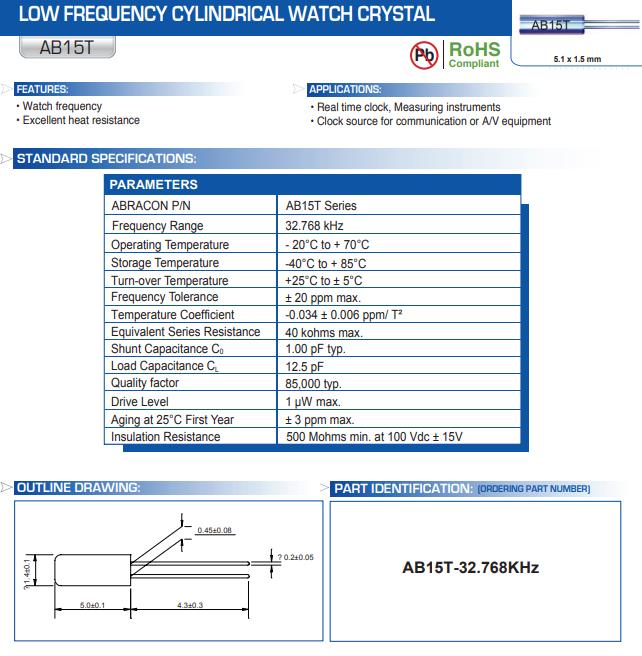

AB15T-32.768KHZ-T-Abracon進口晶振-小體積圓柱插件晶振 參數
| ABRACON P/N | AB15T Series | ||
| 頻率 | 32.768Hz | ||
| 工作溫度 | -20°C to +70°C | ||
| 保存溫度 | -40°C to +85°C | ||
|
翻面溫度 |
+25°C to ± 5°C |
||
| 頻率公差 |
± 20PPM Max |
||
| 溫度系數頻率公差 | -0.034 ± 0.006 ppm/ T²± 20PPM | ||
| 等效串聯電阻(R1) | 40 KΩ | ||
| 并聯電容 (C0) | 1.00 pF typ | ||
| 負載電容 (CL) | 12.5 pF | ||
| 質量因數 |
85,000 typ. |
||
| 激勵功率 | 1 μW max | ||
| 老化性 | ±3 ppm max | ||
| 絕緣電阻 | 500 Mohms min. at 100 Vdc ± 15V | ||
AB15T-32.768KHZ-T-Abracon進口晶振-小體積圓柱插件晶振 尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率偏差 | 負載電容 | 工作溫度 |
| AB26TRQ-32.768KHZ-T | Abracon晶振 | AB26TRQ | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26TRQ-32.768KHZ-T | Abracon晶振 | AB26TRQ | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26TRQ-32.768KHZ-T | Abracon晶振 | AB26TRQ | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26T-32.768KHZ | Abracon晶振 | AB26T | 32.768kHz | ±20ppm | 12.5pF | -10°C ~ 60°C |
| AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB26TRB-32.768KHZ-T | Abracon晶振 | AB26TRB | 32.768kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| AB15T-32.768KHZ-T | Abracon晶振 | AB15T | 32.768kHz | ±20ppm | 12.5pF | -20°C ~ 70°C |
| AB308-4.000MHZ | Abracon晶振 | AB308 | 4MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.288MHZ | Abracon晶振 | AB308 | 12.288MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.352MHZ | Abracon晶振 | AB308 | 12.352MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-14.31818MHZ | Abracon晶振 | AB308 | 14.31818MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-14.7456MHZ | Abracon晶振 | AB308 | 14.7456MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.257MHZ | Abracon晶振 | AB308 | 16.257MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.667MHZ | Abracon晶振 | AB308 | 16.667MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-4.9152MHZ | Abracon晶振 | AB308 | 4.9152MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-28.000MHZ | Abracon晶振 | AB308 | 28MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-28.6363MHZ | Abracon晶振 | AB308 | 28.6363MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-29.4912MHZ | Abracon晶振 | AB308 | 29.4912MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-53.125MHZ | Abracon晶振 | AB308 | 53.125MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-8.000MHZ | Abracon晶振 | AB308 | 8MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-10.000MHZ | Abracon晶振 | AB308 | 10MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-12.000MHZ | Abracon晶振 | AB308 | 12MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-16.000MHZ | Abracon晶振 | AB308 | 16MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-20.000MHZ | Abracon晶振 | AB308 | 20MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-5.000MHZ | Abracon晶振 | AB308 | 5MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-6.000MHZ | Abracon晶振 | AB308 | 6MHz | ±30ppm | 16pF | -10°C ~ 60°C |
| AB308-7.3728MHZ | Abracon晶振 | AB308 | 7.3728MHz | ±30ppm | 16pF | -10°C ~ 60°C |
