405C35B25M00000-25MHz-13pf-美國CTS無源晶振

頻率：25MHz

尺寸：5.0mm x 3.2mm

405C35B25M00000晶振,頻率25MHz,負載13pf,美國CTS無源晶振,歐美進口晶振,5032mm晶振,無鉛環保晶振,無線網絡晶振,USB接口晶振,手持式設備晶振,網絡終端晶振,通信設備晶振.

訂購熱線：0755-27837162

405C35B25M00000-25MHz-13pf-美國CTS無源晶振,405C35B25M00000晶振,頻率25MHz,負載13pf,美國CTS無源晶振,歐美進口晶振,5032mm晶振,無鉛環保晶振,無線網絡晶振,USB接口晶振,手持式設備晶振,網絡終端晶振,通信設備晶振.

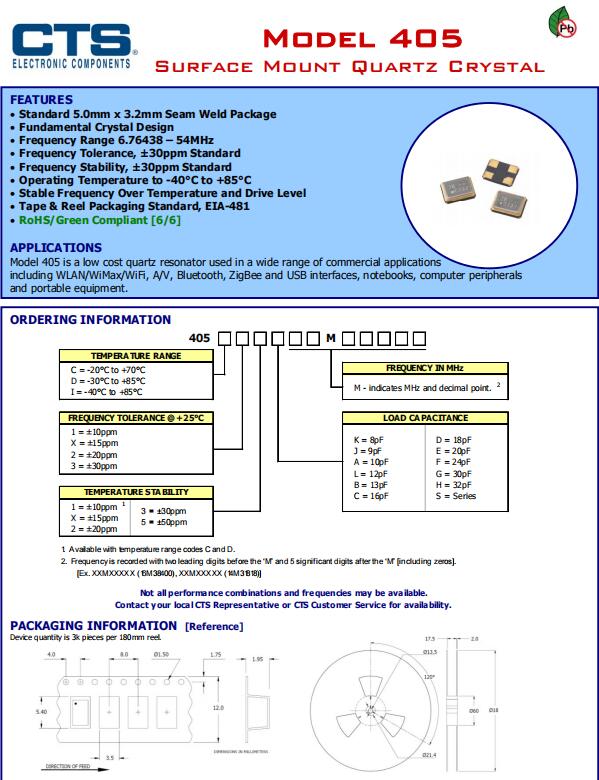

405C35B25M00000-25MHz-13pf-美國CTS無源晶振特征

1.標準5.0mm x 3.2mm焊縫封裝基本晶體設計

2.頻率范圍6.76438 - 54MHz 頻率公差±30ppm標準頻率穩定性±30ppm標準工作溫度-40℃~ +85℃

3.膠帶和卷軸包裝標準, EIA-481 符合RoHS/綠色標準

4.405型是一種低成本的石英諧振器,廣泛用于商業應用,包括WLAN/WiMax/WiFi, A/V,藍牙,ZigBee和USB接口,筆記本電腦,電腦外圍設備,便攜式設備。

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

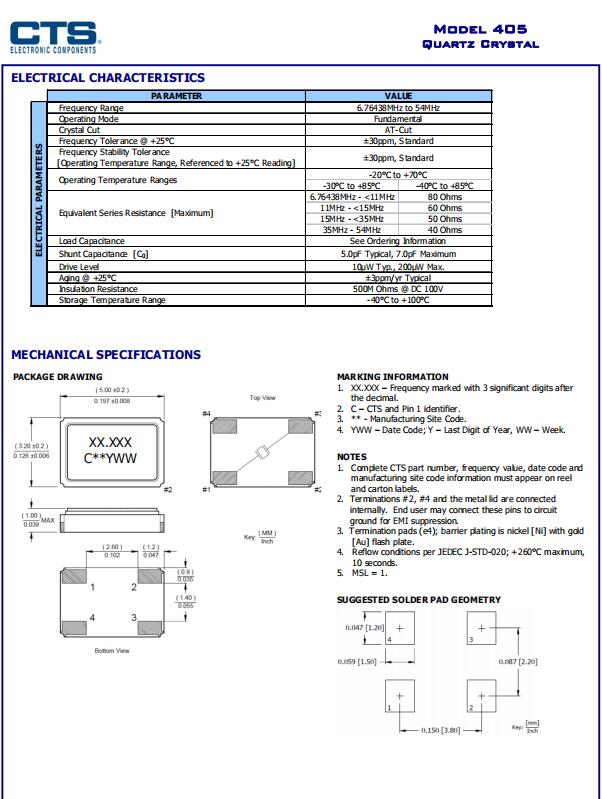

405C35B25M00000-25MHz-13pf-美國CTS無源晶振參數

項目			數值
頻率			25MHz
操作模式			Fundamental
晶體切割			AT-Cut
工作溫度			-20°C to +70°C
保存溫度			-40°C to +100°C
頻率公差 @ +25°C			± 30PPM
工作溫度范圍內的頻率穩定性 ( ref. to +25°C)			± 30PPM
等效串聯電阻(R1)			50 Ω
并聯電容 (C0)			5.0pF Typical, 7.0pF Maximum
負載電容 (CL)			13 pF
激勵功率			200 μW Max
老化 @ +25°C			±3ppm/yr Typical
絕緣電阻			500M Ohms @ DC 100V

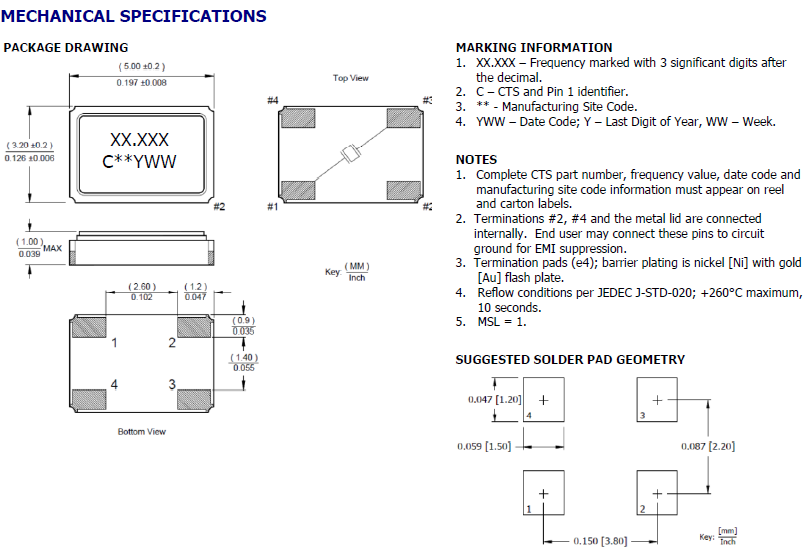

405C35B25M00000-25MHz-13pf-美國CTS無源晶振尺寸圖

原廠編碼	生產廠家	型號	頻率	頻率穩定度	頻率偏差	負載電容	ESR電阻	工作溫度
405C35B16M00000	CTS 晶振	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405I35D12M00000	CTS 晶振	405	12MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405C35B25M00000	CTS 晶振	405	25MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405I35D25M00000	CTS 晶振	405	25MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405C35D12M00000	CTS 晶振	405	12MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C35B24M00000	CTS 晶振	405	24MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35D27M00000	CTS 晶振	405	27MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405C35B16M36800	CTS 晶振	405	16.368MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B19M20000	CTS 晶振	405	19.2MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405I35D48M00000	CTS 晶振	405	48MHz	±50ppm	±30ppm	18pF	50 Ohm	-40°C ~ 85°C
405C35B11M05920	CTS 晶振	405	11.0592MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35E16M00000	CTS 晶振	405	16MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
405C35D10M00000	CTS 晶振	405	10MHz	±50ppm	±30ppm	18pF	80 Ohm	-20°C ~ 70°C
405C11B26M00000	CTS 晶振	405	26MHz	±10ppm	±10ppm	13pF	50 Ohm	-20°C ~ 70°C
405C11A16M00000	CTS 晶振	405	16MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A19M20000	CTS 晶振	405	19.2MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C35B12M80000	CTS 晶振	405	12.8MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35B13M00000	CTS 晶振	405	13MHz	±50ppm	±30ppm	13pF	60 Ohm	-20°C ~ 70°C
405C35E12M00000	CTS 晶振	405	12MHz	±50ppm	±30ppm	20pF	60 Ohm	-20°C ~ 70°C
405I35B40M00000	CTS 晶振	405	40MHz	±50ppm	±30ppm	13pF	50 Ohm	-40°C ~ 85°C
405C35D14M31818	CTS 晶振	405	14.31818MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
405C35D12M28800	CTS 晶振	405	12.288MHz	±50ppm	±30ppm	18pF	60 Ohm	-20°C ~ 70°C
405I35B16M00000	CTS 晶振	405	16MHz	±50ppm	±30ppm	13pF	60 Ohm	-40°C ~ 85°C
405C35D30M00000	CTS 晶振	405	30MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405I35D20M00000	CTS 晶振	405	20MHz	±50ppm	±30ppm	18pF	60 Ohm	-40°C ~ 85°C
405C35B26M00000	CTS 晶振	405	26MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35E10M00000	CTS 晶振	405	10MHz	±50ppm	±30ppm	20pF	80 Ohm	-20°C ~ 70°C
405C35D24M00000	CTS 晶振	405	24MHz	±50ppm	±30ppm	18pF	50 Ohm	-20°C ~ 70°C
405I35E25M00000	CTS 晶振	405	25MHz	±50ppm	±30ppm	20pF	50 Ohm	-40°C ~ 85°C
405C35B20M00000	CTS 晶振	405	20MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B20M00000	CTS 晶振	405	20MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C35B20M00000	CTS 晶振	405	20MHz	±50ppm	±30ppm	13pF	50 Ohm	-20°C ~ 70°C
405C11A25M00000	CTS 晶振	405	25MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A25M00000	CTS 晶振	405	25MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A25M00000	CTS 晶振	405	25MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A40M00000	CTS 晶振	405	40MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A40M00000	CTS 晶振	405	40MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A40M00000	CTS 晶振	405	40MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A26M00000	CTS 晶振	405	26MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A26M00000	CTS 晶振	405	26MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A26M00000	CTS 晶振	405	26MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A18M43200	CTS 晶振	405	18.432MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A18M43200	CTS 晶振	405	18.432MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A18M43200	CTS 晶振	405	18.432MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A14M74560	CTS 晶振	405	14.7456MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A14M74560	CTS 晶振	405	14.7456MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A14M74560	CTS 晶振	405	14.7456MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A20M00000	CTS 晶振	405	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A20M00000	CTS 晶振	405	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A20M00000	CTS 晶振	405	20MHz	±10ppm	±10ppm	10pF	60 Ohm	-20°C ~ 70°C
405C11A30M00000	CTS 晶振	405	30MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A30M00000	CTS 晶振	405	30MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
405C11A30M00000	CTS 晶振	405	30MHz	±10ppm	±10ppm	10pF	50 Ohm	-20°C ~ 70°C
