Renesas晶振,XPL53525.000000K,低抖動晶振,航空航天設備晶振,Renesas晶振,XP石英晶體振蕩器,XPL53525.000000K晶振,5032mm晶振,低抖動差分晶振,頻率25MHz,工作溫度-40~105°C,電壓3.3V,耐高溫晶振,高品質晶振,航空航天設備晶振,測試與測量設備晶振,低端路由器晶振,全球定位系統晶振.

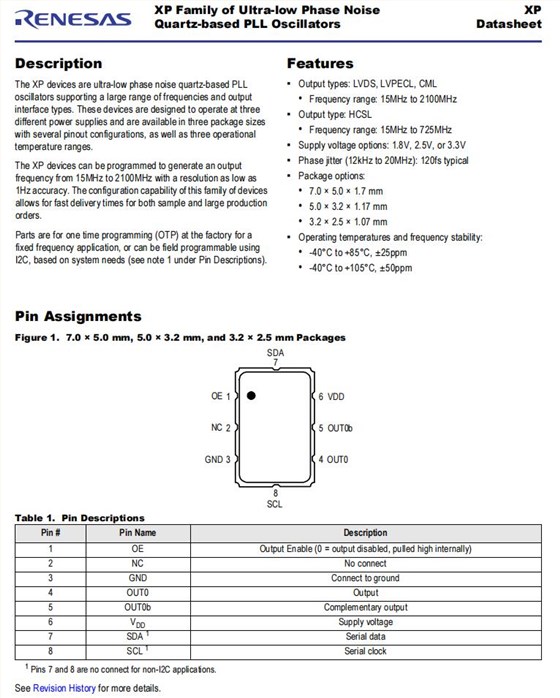

Renesas晶振,XPL53525.000000K,低抖動晶振,航空航天設備晶振特點：
•輸出類型:LVDS, LVPECL, CML
•頻率范圍:15MHz至2100MHz
•輸出類型:HCSL
•頻率范圍:15MHz至725MHz
•供電電壓選項:1.8V, 2.5V，或3.3V
•相位抖動(12kHz至20MHz): 120fs典型
•包裝選項:
•7.0 × 5.0 × 1.7 mm
•5.0 × 3.2 × 1.17毫米
•3.2 × 2.5 × 1.07 mm
•工作溫度和頻率穩定性:
•-40°C至+85°C，±25ppm
•-40°C至+105°C，±50ppm
Renesas晶振,XPL53525.000000K,低抖動晶振,航空航天設備晶振參數表
3ps Typ
項目
符號
規格說明
條件
額定頻率
f_nom
25MHz
請聯系我們以便獲取其它可用頻率的相關信息
電源電壓
Vcc
3.3V±0.3V
儲存溫度
T_stg
-55℃~+125℃
裸存
工作溫度
T_use
-40℃~ +105℃
頻率公差（標準）
f_tol
±50ppm
+25℃,超出標準的規格說明請聯系我們以便獲取相關信息
供電電流
IDD
67mA Max
LVDS 40+MHz to 220MHz
差分輸出電壓
VOD
0.6V Max
VDD = 3.3V ±5%.
對稱性
SYM
48%~52%
Atoutputscrossing point
輸出負載
L_LVDS
100Ω
LVDSDifferential.
輸入電壓
VIH
70%VDD Min
LVDS
VIL
30%VDD Max
上升下降時間
tr/tf
400ps Max
LVDS 20% to 80% Vpp
起始時間
t str
5ms Typ
VDD達到最小指定水平后輸出有效時間
周期抖動
JPER
LVDS
相位抖動
tpj
115 fs Typ
12KHZ~20MHz
老化
f_aging
±3ppm/year
+25℃,第一年

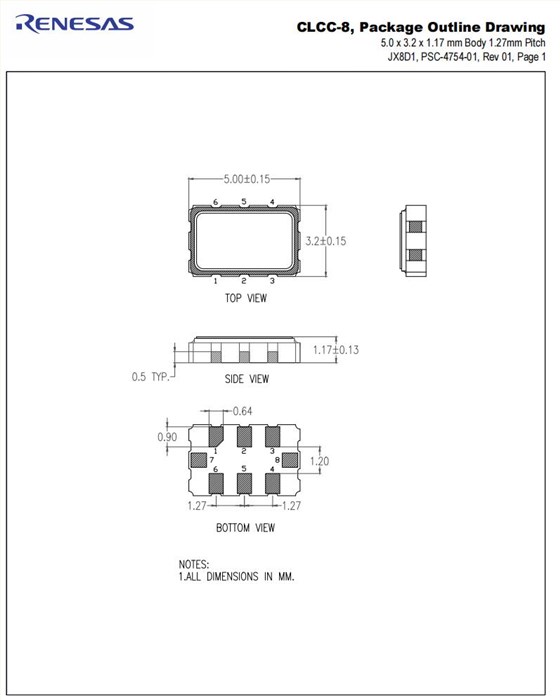

Renesas晶振,XPL53525.000000K,低抖動晶振,航空航天設備晶振尺寸圖
| 原廠編碼 | 品牌 | 型號 | 頻率 | 輸出 | 電壓 | 頻率穩定性 | 工作溫度 | 電流(Max) |
| XPP336100.000000I | Renesas Electronics America Inc | XP | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL536800.000000I | Renesas Electronics America Inc | XP | 800 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPP736161.132812I | Renesas Electronics America Inc | XP | 161.132812 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL526200.000000I | Renesas Electronics America Inc | XP | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP736125.000000I | Renesas Electronics America Inc | XP | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPC736174.703000I | Renesas Electronics America Inc | XP | 174.703 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPL316133.333333I | Renesas Electronics America Inc | XP | 133.333333 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPC316800.000000I | Renesas Electronics America Inc | XP | 800 MHz | CML | 1.8V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPC336212.500000I | Renesas Electronics America Inc | XP | 212.5 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPL336016.000000I | Renesas Electronics America Inc | XP | 16 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP316156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVPECL | 1.8V | ±25ppm | -40°C ~ 85°C | 93mA |
| XPL536C10.937500I | Renesas Electronics America Inc | XP | 1.2109375 GHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPP736212.500000I | Renesas Electronics America Inc | XP | 212.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL736156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL536148.500000I | Renesas Electronics America Inc | XP | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP736156.253906I | Renesas Electronics America Inc | XP | 156.253906 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPC536020.000000I | Renesas Electronics America Inc | XP | 20 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPC736174.000000I | Renesas Electronics America Inc | XP | 174 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPP736175.000000I | Renesas Electronics America Inc | XP | 175 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL736148.500000I | Renesas Electronics America Inc | XP | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL336148.500000I | Renesas Electronics America Inc | XP | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL336156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL336125.000000I | Renesas Electronics America Inc | XP | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL316050.000000I | Renesas Electronics America Inc | XP | 50 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP736100.000000I | Renesas Electronics America Inc | XP | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPC736625.000000I | Renesas Electronics America Inc | XP | 625 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPP736106.250000I | Renesas Electronics America Inc | XP | 106.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL316032.000000I | Renesas Electronics America Inc | XP | 32 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL516156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP735156.250005I | Renesas Electronics America Inc | XP | 156.250005 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 94mA |
| XPP736122.880000I | Renesas Electronics America Inc | XP | 122.88 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPN336078.125000I | Renesas Electronics America Inc | XP | 78.125 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C | 83mA |
| XPP736124.992000I | Renesas Electronics America Inc | XP | 124.992 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL336100.000000I | Renesas Electronics America Inc | XP | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL736125.000000I | Renesas Electronics America Inc | XP | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPC316156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | CML | 1.8V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPL536148.163548I | Renesas Electronics America Inc | XP | 148.163548 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL736300.000000I | Renesas Electronics America Inc | XP | 300 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL316156.000000I | Renesas Electronics America Inc | XP | 156 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL326200.000000I | Renesas Electronics America Inc | XP | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP736200.000000I | Renesas Electronics America Inc | XP | 200 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL526312.500000I | Renesas Electronics America Inc | XP | 312.5 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL336040.000000I | Renesas Electronics America Inc | XP | 40 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP526156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPN326312.500000I | Renesas Electronics America Inc | XP | 312.5 MHz | HCSL | 2.5V | ±25ppm | -40°C ~ 85°C | 95mA |
| XPC736100.000000I | Renesas Electronics America Inc | XP | 100 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPN336025.000000I | Renesas Electronics America Inc | XP | 25 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C | 83mA |
| XPM736625.000000I | Renesas Electronics America Inc | XP | 625 MHz | - | 3.3V | ±25ppm | -40°C ~ 85°C | - |
| XPN336100.000000I | Renesas Electronics America Inc | XP | 100 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C | 83mA |
| XPL736800.000000I | Renesas Electronics America Inc | XP | 800 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPP726212.500000I | Renesas Electronics America Inc | XP | 212.5 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPL536070.656000I | Renesas Electronics America Inc | XP | 70.656 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP736250.000000I | Renesas Electronics America Inc | XP | 250 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPP726312.510900I | Renesas Electronics America Inc | XP | 312.5109 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPP736915.000000I | Renesas Electronics America Inc | XP | 915 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPP336830.000000I | Renesas Electronics America Inc | XP | 830 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPN336156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C | 83mA |
| XPN316161.132812I | Renesas Electronics America Inc | XP | 161.132812 MHz | HCSL | 1.8V | ±25ppm | -40°C ~ 85°C | 95mA |
| XPP336156.253906I | Renesas Electronics America Inc | XP | 156.253906 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL316033.333333I | Renesas Electronics America Inc | XP | 33.333333 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPN536156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C | 83mA |
| XPP336250.000000I | Renesas Electronics America Inc | XP | 250 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPN316100.000000I | Renesas Electronics America Inc | XP | 100 MHz | HCSL | 1.8V | ±25ppm | -40°C ~ 85°C | 95mA |
| XPL316080.000000I | Renesas Electronics America Inc | XP | 80 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL336200.000000I | Renesas Electronics America Inc | XP | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL336644.531250I | Renesas Electronics America Inc | XP | 644.53125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPL326156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP736161.132580I | Renesas Electronics America Inc | XP | 161.13258 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPP726445.500000I | Renesas Electronics America Inc | XP | 445.5 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPL326500.000000I | Renesas Electronics America Inc | XP | 500 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPL336830.000000I | Renesas Electronics America Inc | XP | 830 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPP726160.000000I | Renesas Electronics America Inc | XP | 160 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPL516625.000000I | Renesas Electronics America Inc | XP | 625 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPL316322.265625I | Renesas Electronics America Inc | XP | 322.265625 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP336312.500000I | Renesas Electronics America Inc | XP | 312.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPC336156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPN716156.253906I | Renesas Electronics America Inc | XP | 156.253906 MHz | HCSL | 1.8V | ±25ppm | -40°C ~ 85°C | 95mA |
| XPL526156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP516625.000000I | Renesas Electronics America Inc | XP | 625 MHz | LVPECL | 1.8V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPL726B00.000000I | Renesas Electronics America Inc | XP | 1.1 GHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPL336049.152000I | Renesas Electronics America Inc | XP | 49.152 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP336050.000000I | Renesas Electronics America Inc | XP | 50 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL316026.000000I | Renesas Electronics America Inc | XP | 26 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL736016.254000I | Renesas Electronics America Inc | XP | 16.254 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP336207.500000I | Renesas Electronics America Inc | XP | 207.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL336070.656000I | Renesas Electronics America Inc | XP | 70.656 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP726312.500000I | Renesas Electronics America Inc | XP | 312.5 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPP336040.000000I | Renesas Electronics America Inc | XP | 40 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL726C00.000000I | Renesas Electronics America Inc | XP | 1.2 GHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPP336A00.000000I | Renesas Electronics America Inc | XP | 1 GHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPC536156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | CML | 3.3V | ±25ppm | -40°C ~ 85°C | 61mA |
| XPL536200.000000I | Renesas Electronics America Inc | XP | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL326161.132800I | Renesas Electronics America Inc | XP | 161.1328 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL336160.000000I | Renesas Electronics America Inc | XP | 160 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPN326156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | HCSL | 2.5V | ±25ppm | -40°C ~ 85°C | 95mA |
| XPL336830.078125I | Renesas Electronics America Inc | XP | 830.078125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPL336312.500000I | Renesas Electronics America Inc | XP | 312.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP736159.375000I | Renesas Electronics America Inc | XP | 159.375 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL526027.000000I | Renesas Electronics America Inc | XP | 27 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP536161.132812I | Renesas Electronics America Inc | XP | 161.132812 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPP726156.257813I | Renesas Electronics America Inc | XP | 156.257813 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPP726100.000000I | Renesas Electronics America Inc | XP | 100 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPP526155.520000I | Renesas Electronics America Inc | XP | 155.52 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL516125.000000I | Renesas Electronics America Inc | XP | 125 MHz | LVDS | 1.8V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL726156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL726200.000000I | Renesas Electronics America Inc | XP | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPP516100.000000I | Renesas Electronics America Inc | XP | 100 MHz | LVPECL | 1.8V | ±25ppm | -40°C ~ 85°C | 93mA |
| XPP536156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPN736156.250000I | Renesas Electronics America Inc | XP | 156.25 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C | 83mA |
| XPP726127.500000I | Renesas Electronics America Inc | XP | 127.5 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPL736148.351648I | Renesas Electronics America Inc | XP | 148.351648 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL526125.000000I | Renesas Electronics America Inc | XP | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPN736100.000000I | Renesas Electronics America Inc | XP | 100 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C | 83mA |
| XPP526150.000000I | Renesas Electronics America Inc | XP | 150 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 94mA |
| XPP736A00.000000I | Renesas Electronics America Inc | XP | 1 GHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 110mA |
| XPL736F00.000000I | Renesas Electronics America Inc | XP | 1.5 GHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 85mA |
| XPN536100.000000I | Renesas Electronics America Inc | XP | 100 MHz | HCSL | 3.3V | ±25ppm | -40°C ~ 85°C | 83mA |
| XPL736165.000000I | Renesas Electronics America Inc | XP | 165 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL736200.000000I | Renesas Electronics America Inc | XP | 200 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPL726125.000000I | Renesas Electronics America Inc | XP | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL726166.666000I | Renesas Electronics America Inc | XP | 166.666 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 66mA |
| XPL736322.265625I | Renesas Electronics America Inc | XP | 322.265625 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 67mA |
| XPP535156.25000I | Renesas Electronics America Inc | XP | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 94mA |
