NKG晶振,CT25M19.2000F10V1T-100,2520熱敏晶振,6G移動通信晶振特點：
●內置熱敏電阻100kΩ用于溫度測量
●非常適合與內置溫度補償振蕩器電路的ICs一起使用

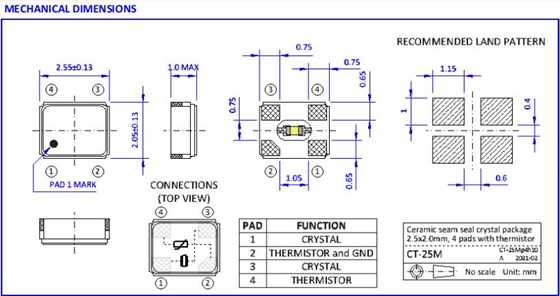

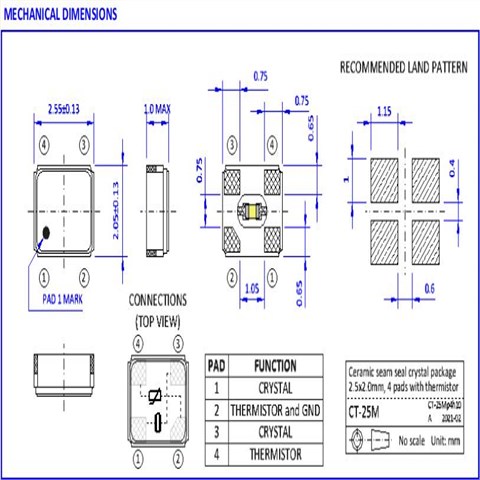

●高度可靠的包裝尺寸2.5x2.0x0.8mm，帶有4個襯墊

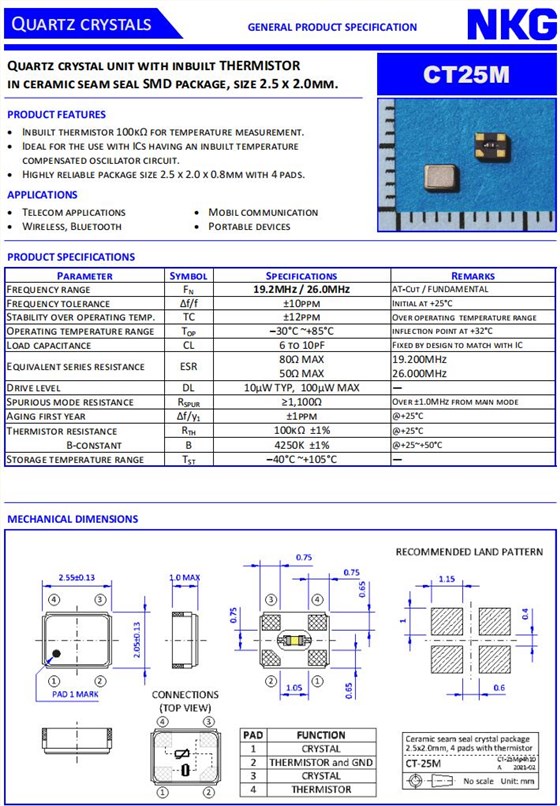

NKG晶振,CT25M19.2000F10V1T-100,2520熱敏晶振,6G移動通信晶振規格表
Parameter
Symbol
Specifications
Remarks
Frequency range
FN
19.2MHz
-
Cut and operation mode
-
FUNDAMENTAL
-
Frequency tolerance
Δf/f
±10ppm
Other options available
Stability over operating temp.
TC
±12ppm
Depending on operating temperaturerange, other options available
Operating temperature range
TOP
–30°C ~+85°C
Options available
Load capacitance
CL
10pF
Please specify load capacitance
Equivalent series resistance
ESR
80Ω MAX
19.2MHz
Drive level
DL
10µW TYP, 100µW MAX
-
Spurious mode resistance
RSPUR
≥1,100Ω
Over ±1.0MHz from main mode
Aging first year
Δf/y1
±1ppm
@+25°C
Storage temperature range
TST
–40°C ~+105°C
-
