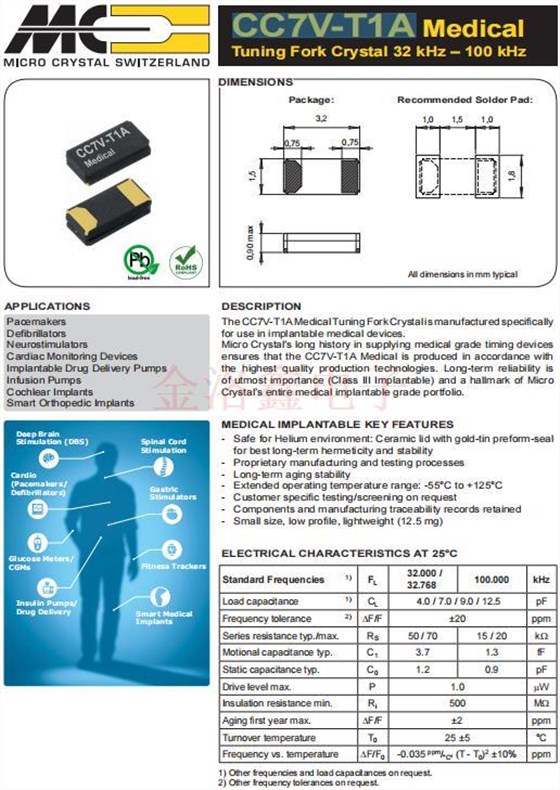

微晶32.768K晶振CC7V-T1A,CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC貼片晶體,Micro晶振,歐美晶振,3215mm晶振,32.768K晶振,無源諧振器,無源晶體,陶瓷晶振,音叉晶體,小尺寸晶振,型號CC7V-T1A,編碼CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC是一款陶瓷面的無源晶體,尺寸為3215mm,頻率32.768KKHZ,精度20ppm,負載7pF,工作溫度-40~+85°C采用優異的原料匠心打磨而成,符合國家認證標準,產品廣泛用于心臟起搏器，去纖顫器，神經，心臟監測裝置，植入式藥物輸送泵，輸液泵，耳蝸植入設備，智能骨科植入物等領域.
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA貼片晶振在加工過程中產生的應力及輕微表面缺陷.在PLC控制程序中輸入已設計好的溫度曲線,使真空室溫度跟隨設定曲線對晶體組件進行退火,石英晶振通過合理的真空退火技術可提高晶振主要參數的穩定性,以及提高石英晶振的年老化特性.微晶32.768K晶振CC7V-T1A,CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC貼片晶體
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC晶振
|
32.768KHZ |
|||
|
+25°C對于超出標準的規格說明, |
|||
|
/ |
|||
|
7PF |
|||

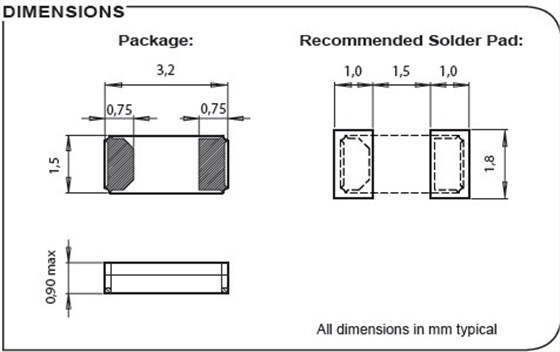

微晶32.768K晶振CC7V-T1A,CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC貼片晶體 尺寸圖
清洗
關于一般清洗液的使用以及超聲波清洗沒有問題，但這僅僅是對單個石英晶體產品進行試驗所得的結果，因此請根據實際使用狀態進行確認。
由于音叉型晶體諧振器的頻率范圍和超聲波清洗機的清洗頻率很近，容易受到共振破壞，因此請盡可能避免超聲波清洗。
若要進行超聲波清洗，必須事先根據實際使用狀態進行確認。微晶32.768K晶振CC7V-T1A,CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC貼片晶體
撞擊
雖然貼片晶振產品在設計階段已經考慮到其耐撞擊性，但如果掉到地板上或者受到過度的撞擊，以防萬一還是要檢查特性后再使用。
裝載
SMD產品
SMD音叉晶體產品支持自動貼裝，但還是請預先基于所使用的搭載機實施搭載測試，確認其對特性沒有影響。 在切斷工序等會導致基板發生翹曲的工序中，請注意避免翹曲影響到產品的特性以及軟焊。 基于超聲波焊接的貼裝以及加工會使得時鐘晶體產品（諧振器、振蕩器、濾波器）內部傳播過大的振動，有可能導致特性老化以及引起不振蕩，因此不推薦使 用。
引線類型產品
當引線彎折、成型以及貼裝到印制電路板時，請注意避免對基座玻璃部分施加壓力。否則有可能導致玻璃出現裂痕，從而引起性能劣化。微晶32.768K晶振CC7V-T1A,CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC貼片晶體
保管
保管在高溫多濕的場所可能會導致端子軟焊性的老化。
請在沒有直射陽光，不發生結露的場所保管。
| 無源石英諧振器編碼 | 制造商 | 描述 | 產品類型 | 頻率 | 頻率穩定性 | 容差 | 最小工作溫度 | 最大工作溫度 |
| OV-7604-C7-32.768k-20PPM-TB-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C AEC-Q200 | Clock Oscillators | 32.768 kHz | - 40 C | + 125 C | ||
| OV-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 85 C | |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| OV-0100-C7-100.000kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C | Clock Oscillators | 100 kHz | - 40 C | + 85 C | ||
| OM-0100-C8-100.00kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-20 PPM -40/+85C | Clock Oscillators | 100 kHz | - 40 C | + 85 C | ||
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| OM-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| OM-7604-C7-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM I2C -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro Crystal | 晶體32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 125 C |
