X1G005291013200具有低抖動和低功耗以及耐高溫高壓等特點

來源：金洛鑫瀏覽：- 發布日期：2022-09-06 14:49:14【大中小】

分享到：

隨著現在各種精密的電子儀器上開始應用可編程晶振，可編程晶振實為有源晶振，石英可編程（Q MEMS）具有高穩定、高精度等優越性能的石英材料[QUARTZ]和[MEMS]組合而成的造詞，以石英為原料進行精微加工(光刻)并可以提供的小型化、高性能的晶體元器件被稱為[Q MEMS]

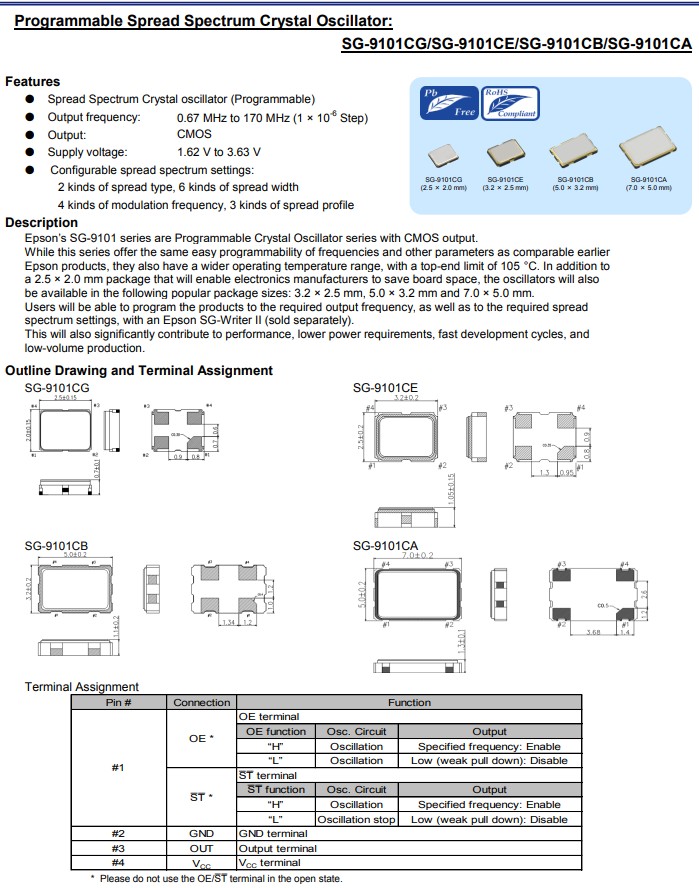

日本進口愛普生晶振SG-9101系列，是一款可編程晶體振蕩器，支持CMOS電平輸出，頻率范圍0.67MHz至170MHz，電源電壓1.62V至3.63V，提供以下常見封裝尺寸:2.5x2.0mm，3.2x2.5mm、5.0x3.2mm和7.0x5.0mm，四腳貼片晶振，有源晶振，具有小體積輕薄型，低抖動、低功耗、耐高溫、高壓、高濕、抗震性能好，被廣泛用于鐘表電子、數碼產品、車載數碼、智能手機、對講機、數碼相機、MID平板電腦、光電技術及各種變頻調速設備等通訊設備。

X1G005291013200具有低抖動和低功耗以及耐高溫高壓等特點,可編程晶振

產品編碼	頻率	石英晶振	尺寸(長寬高)	輸出波	電源電壓	工作溫度
X1G005291001100	27.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291001200	42.539760 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291001300	33.333300 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291001400	46.495960 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291001500	59.700000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291001600	20.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291001700	33.333330 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291001800	70.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291001900	33.333300 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291002000	16.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291002100	48.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291002200	27.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291002300	27.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291002400	25.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291002500	49.152000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291002600	37.125000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C

X1G005291012700	19.660000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291012800	32.768000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291012900	66.666666 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291013000	33.333333 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291013100	66.600000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291013200	26.666670 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291013300	9.059600 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005291013400	62.500000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291013500	10.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291013600	66.660000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291013700	6.333000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291013800	9.500000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291013900	15.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291014000	10.000000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291014100	62.500000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005291014200	62.600000 MHz	SG-9101CG	2.50x2.00x0.80mm	CMOS	1.620 to 3.630 V	-40 to 85 °C

X1G005291013200具有低抖動和低功耗以及耐高溫高壓等特點,可編程晶振
在購買和選擇具體品牌的可編程晶振之前自然應該了解下其特性，其中不可忽視的就是很多晶振都要面對的氣密性問題，因為可編程晶振是采用全自動化的半導體工藝打造的，所以完全不存在氣密性問題，而且還具備永不停振的優勢。很多人容易把可編程晶振和溫補晶振弄混淆，其實就是因為可編程晶振本身也具備溫度自動補償功能，除此之外低抖動和低功耗以及耐高溫高壓等特點讓其成為手機對講機以及數碼相機等各種精密設備中不可缺少的器件。
