lora模塊低功耗晶振供應SG7050VAN差分晶振X1G004281002000

返回列表 來源：金洛鑫 瀏覽：- 發布日期：2022-09-27 16:25:05【大 中 小】
分享到：

科技發展對差分晶振的使用日益增多,各大晶振品牌紛紛推出差分晶體振蕩器,比如我們所熟悉的KDS晶振,京瓷晶振,NDK晶振,愛普生晶振,IDT晶振等知名品牌.我們都知道差分晶振除了有普通晶振有的功能外,最大的不同就是輸出的方式是差分信號.

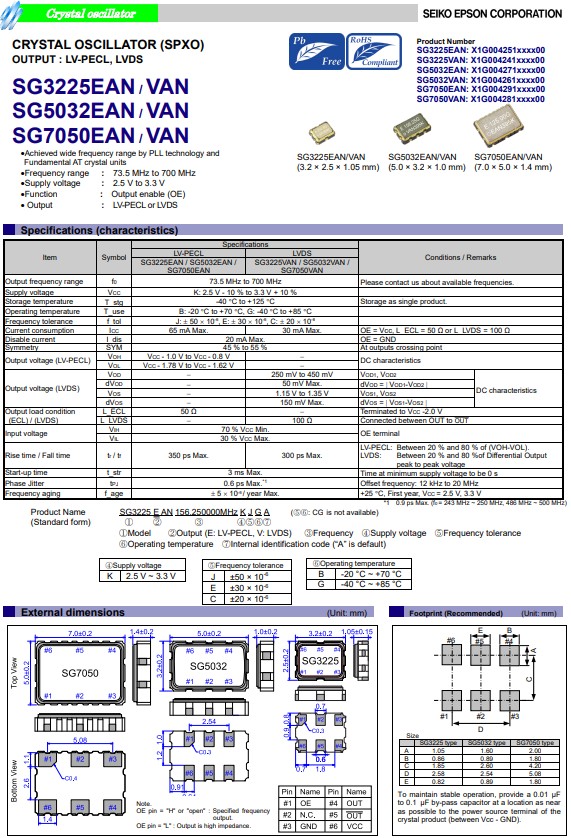

愛普生晶振SG7050VAN是一款LVDS輸出差分晶振，小體積尺寸采用7.0mmx5.0mmx1.6mm緊湊封裝，六腳貼片晶振。通過采用PLL技術和AT基頻晶體單元實現了可靠運行，工作溫度可以在B:-20℃至+70℃/G:-40℃至+85℃的溫度內穩定工作，包括低溫啟動。該器件低功耗（最高30mA），遠低于0.6psRMS（12kHz至20MHz）。采用在2.5V至3.3V之間電源供電，寬頻率范圍73.5MHz至700MHz，SG7050VAN有源晶振具有出色的集成相位抖動性能，小體積輕薄型，低電源電壓，低抖動，低功耗，低損耗，低耗能，低相位噪聲等特點，被廣泛應用于汽車多媒體，車身電子，lora模塊，遙控，太空設備，防盜防災裝置，安放監控等。

lora模塊低功耗晶振供應SG7050VAN差分晶振X1G004281002000

產品編碼 型號 頻率 貼片晶振 輸出波 電源電壓 工作溫度
X1G004281000100 SG7050VAN 125.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281000200 SG7050VAN 125.006250MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281000400 SG7050VAN 100.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281000500 SG7050VAN 200.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281000600 SG7050VAN 400.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281000800 SG7050VAN 212.500000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001000 SG7050VAN 148.500000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001100 SG7050VAN 75.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001200 SG7050VAN 150.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001300 SG7050VAN 155.520000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001400 SG7050VAN 156.250000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001500 SG7050VAN 312.500000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001600 SG7050VAN 312.515625MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001700 SG7050VAN 161.132800MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281001900 SG7050VAN 700.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281002000 SG7050VAN 125.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281002100 SG7050VAN 125.006250MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281002300 SG7050VAN 100.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281002400 SG7050VAN 200.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281002700 SG7050VAN 212.500000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281002800 SG7050VAN 74.250000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281002900 SG7050VAN 148.500000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281003100 SG7050VAN 150.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281003200 SG7050VAN 155.520000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C

SG3225VAN，SG5032VAN,SG7050VAN

X1G004281006600 SG7050VAN 74.250000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281006700 SG7050VAN 148.500000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281006800 SG7050VAN 75.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281006900 SG7050VAN 150.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281007100 SG7050VAN 156.250000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281007200 SG7050VAN 312.500000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281007300 SG7050VAN 312.515625MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281009600 SG7050VAN 148.350000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281010100 SG7050VAN 250.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281010200 SG7050VAN 98.304000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281010300 SG7050VAN 80.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281010400 SG7050VAN 114.285000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281010500 SG7050VAN 250.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281010600 SG7050VAN 350.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281010800 SG7050VAN 644.531000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281011300 SG7050VAN 200.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281011700 SG7050VAN 125.003125MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281011800 SG7050VAN 175.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281011900 SG7050VAN 125.003750MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281012400 SG7050VAN 122.880000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281012500 SG7050VAN 122.880000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281012600 SG7050VAN 250.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281012800 SG7050VAN 622.080000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281013000 SG7050VAN 322.265625MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281013100 SG7050VAN 296.703000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281013300 SG7050VAN 148.351648MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G004281013400 SG7050VAN 300.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281013700 SG7050VAN 133.330000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281013800 SG7050VAN 120.000000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281013900 SG7050VAN 644.531250MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G004281014000 SG7050VAN 296.703000MHz 7.00x5.00x1.60mm LVDS 2.250 to 3.630 V -40 to 85 °C

lora模塊低功耗晶振供應SG7050VAN差分晶振X1G004281002000

差分晶振是普通貼片晶振所不能夠達到的,差分晶振具有低電平,低抖動,低功耗等特性.差分晶振作為目前行業中高要求,高技術石英晶體振蕩器,具有相位低,損耗低的特點,愛普生差分晶振使用于產品中能夠很容易地識別小信號,能夠從容精確地處理雙級信號,對外部電磁干擾(EMI)是高度免疫的,差分石英晶振滿足市場需求,實現高頻高精度等要求,更加保障了各種系統參考時鐘的可靠性。
