ECS-520-8-36B-CTN-TR緊湊型SMD晶體非常適合無線應用
ECS Inc.晶振集團成為市場領導者提供創新、先進的壓電石英晶體元器件、貼片晶振、有源晶體頻率控制組件解決方案到電信、工業、公用事業、導航、汽車、電子、航空航天和醫療與一流的制造行業的基于石英晶體/過濾器,時鐘振蕩器、陶瓷諧振器/過濾器和其他基于壓電的產品.ECS inc .以迅速擴大的市場部門的多元化產品基礎,熱情關注客戶和市場趨勢,調動企業的力量,為世界各地的客戶提供一貫的卓越服務.

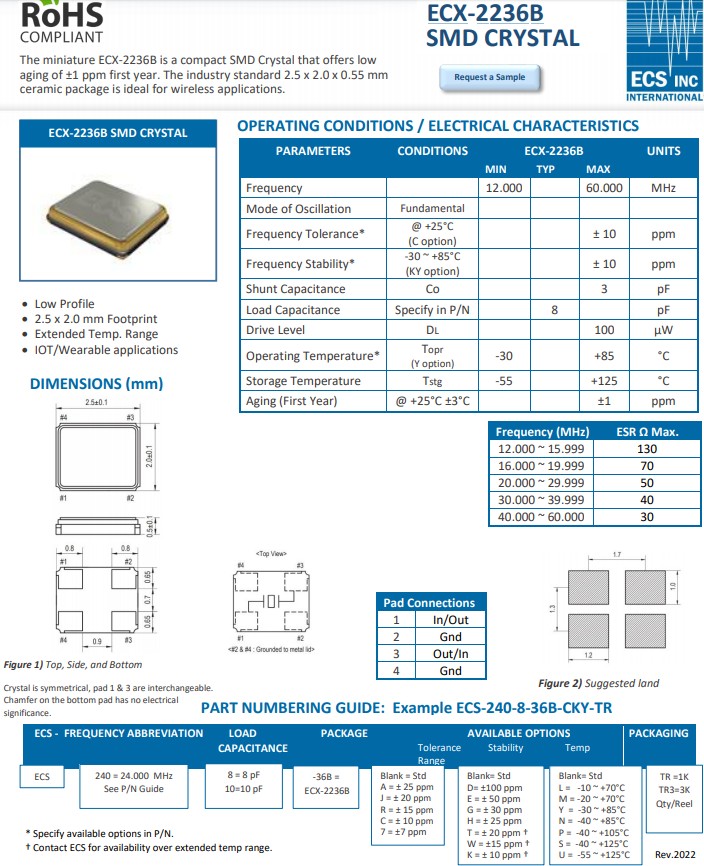

ECS Inc. International的ECX-2236B系列表面貼裝(SMD)石英晶體，采用行業標準的2.5毫米x2.0毫米x0.55毫米4焊盤陶瓷封裝。這些電子元件提供寬頻率范圍，10ppm的緊密穩定性，以及在25°C±3°C時1ppm的低第一年老化，并可選擇擴展溫度范圍。標準ECX-2236B晶體提供10ppm頻率容差和標準范圍的晶體負載電容。該器件非常適合物聯網、無線和可穿戴應用。
ECS-520-8-36B-CTN-TR緊湊型SMD晶體非常適合無線應用
| 圖片 | 編碼 | 頻率 | 頻率穩定性 | 工作溫度 |
|
ECS-520-8-36B-CTN-TR | 52 MHz |
±20ppm |
-40°C ~ +85°C |
|
|
ECS-540-8-36B-CTN-TR | 54 MHz | ±20ppm | -40°C ~ +85°C |
|
|
ECS-600-8-36B-CTN-TR | 60 MHz | ±20ppm | -40°C ~ +85°C |
|
|
ECS-500-4-36B-CTN-TR | 50 MHz | ±20ppm | -40°C ~ +85°C |
|
|
ECS-250-10-36B-JTN-TR | 25 MHz | ±20ppm | -40°C ~ +85°C |
|
|
ECS-384-10-36B-CWN-TR | 38 MHz | ±15ppm | -40°C ~ +85°C |
|
|
ECS-600-8-37B-CTN-TR | 60 MHz | ±20ppm | -40°C ~ +85°C |
| 原廠編碼 | 廠家 | 無源晶振 | 頻率 | 工作溫度 | 包裝/封裝 |
| ECS-270-8-36CKM-TR | ECS Crystal | ECX-2236 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-270-8-36CKM-TR | ECS Crystal | ECX-2236 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-270-8-36CKM-TR | ECS Crystal | ECX-2236 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-8-36CKM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-8-36CKM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-8-36CKM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-300-8-36CKM-TR | ECS Crystal | ECX-2236 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-300-8-36CKM-TR | ECS Crystal | ECX-2236 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-300-8-36CKM-TR | ECS Crystal | ECX-2236 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-8-36CKM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-320-8-36CKM-TR | ECS Crystal | ECX-2236 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-320-8-36CKM-TR | ECS Crystal | ECX-2236 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-320-8-36CKM-TR | ECS Crystal | ECX-2236 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-8-36CKM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-8-36CKM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-8-36CKM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-400-8-36CKM | ECS Crystal | ECX-2236 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-400-8-36CKM | ECS Crystal | ECX-2236 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-400-8-36CKM | ECS Crystal | ECX-2236 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-192-8-36CKM-TR | ECS Crystal | ECX-2236 | 19.2MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-192-8-36CKM-TR | ECS Crystal | ECX-2236 | 19.2MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-192-8-36CKM-TR | ECS Crystal | ECX-2236 | 19.2MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-260-8-36CKM-TR | ECS Crystal | ECX-2236 | 26MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-260-8-36CKM-TR | ECS Crystal | ECX-2236 | 26MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-260-8-36CKM-TR | ECS Crystal | ECX-2236 | 26MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-480-8-36CKM | ECS Crystal | ECX-2236 | 48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-480-8-36CKM | ECS Crystal | ECX-2236 | 48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-480-8-36CKM | ECS Crystal | ECX-2236 | 48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-10-36-JTM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-10-36-JTM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-200-10-36-JTM-TR | ECS Crystal | ECX-2236 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-300-10-36-JGN-TR | ECS Crystal | ECX-2236 | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-300-10-36-JGN-TR | ECS Crystal | ECX-2236 | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-300-10-36-JGN-TR | ECS Crystal | ECX-2236 | 30MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-10-36-JTM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-10-36-JTM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-160-10-36-JTM-TR | ECS Crystal | ECX-2236 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-192-10-36-JGN-TR | ECS Crystal | ECX-2236 | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-192-10-36-JGN-TR | ECS Crystal | ECX-2236 | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-192-10-36-JGN-TR | ECS Crystal | ECX-2236 | 19.2MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-200-10-36-JGN-TR | ECS Crystal | ECX-2236 | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-200-10-36-JGN-TR | ECS Crystal | ECX-2236 | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-200-10-36-JGN-TR | ECS Crystal | ECX-2236 | 20MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-240-10-36-JTM-TR | ECS晶體 | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-10-36-JTM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-10-36-JTM-TR | ECS Crystal | ECX-2236 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-240-10-36-JGN-TR | ECS Crystal | ECX-2236 | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-240-10-36-JGN-TR | ECS Crystal | ECX-2236 | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-240-10-36-JGN-TR | ECS Crystal | ECX-2236 | 24MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-320-10-36-JGN-TR | ECS Crystal | ECX-2236 | 32MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-320-10-36-JGN-TR | ECS Crystal | ECX-2236 | 32MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-320-10-36-JGN-TR | ECS Crystal | ECX-2236 | 32MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-10-36-JGN-TR | ECS Crystal | ECX-2236 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-10-36-JGN-TR | ECS Crystal | ECX-2236 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-160-10-36-JGN-TR | ECS Crystal | ECX-2236 | 16MHz | -40°C ~ 85°C | 4-SMD, No Lead |
| ECS-250-8-36CKM-TR | ECS Crystal | ECX-2236 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-250-8-36CKM-TR | ECS Crystal | ECX-2236 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-250-8-36CKM-TR | ECS Crystal | ECX-2236 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-184-8-36CKM-TR | ECS Crystal | ECX-2236 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-184-8-36CKM-TR | ECS Crystal | ECX-2236 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| ECS-184-8-36CKM-TR | ECS Crystal | ECX-2236 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
特點：
小體積尺寸：2.5x2.0x0.55mm四腳貼片晶振
頻率范圍：12MHz~60MHz石英晶體諧振器
10ppm標準頻率容差，提供7ppm選項
10ppm標準穩定性
低老化，最大1ppm。第一年@ 25℃3℃
標準工作溫度:-30℃～+85℃
提供擴展溫度范圍選項
低ESR
符合RoHS 3和REACH標準
應用于：物聯網，產業的，無線的，移動設備，衣服，Wi-Fi，藍牙
