Crystek溫度補償晶振低相噪系列清單
1958年成立的Crystek Corporation，中文名字叫做瑞斯克，從上個世紀開始，Crystek晶振公司就成為國際市場重要的頻率元件供應商，為了更好的生產和管控石英晶體和石英晶體振蕩器產品，Crystek還成立了兩個負責頻率控制的部門。在還沒進入21世紀的時候，Crystek Corporation就成功研發了溫度補償晶振，擁有優越的溫度補償性能，同時還具備低相噪特性，一時之間引發了業界的廣泛討論。其所有產品從開發，設計，研發，生產，制造，包裝，出貨等一系列操作，都由Crystek公司自己完成。

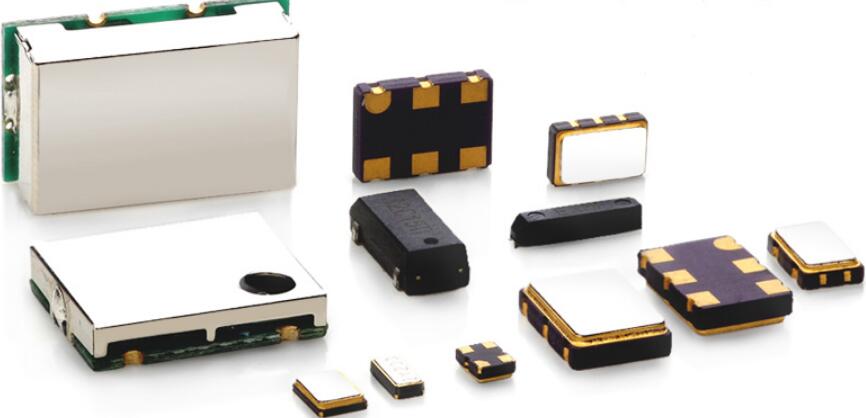

Crystek公司量產的TCXO溫補晶振有貼片型和插件型兩種，目前正在加緊研發小尺寸封裝，高性能的方案，已實現量產的最小尺寸是2.5*2.0mm，標準的頻率公差是±1.0ppm，±1.5ppm，±2.0ppm，±2.5ppm等。基本上都是屬于低頻系列，最低的頻率有1.000MHz，最高是38.000MHz，輸出方式有CLIPPED SINE，HCMOS可選。工作溫度范圍有多種，分別是-10℃~+50℃，-30℃~+75℃，-40℃~+85℃等，符合中高端產品的要求。
Crystek溫度補償晶振低相噪系列清單：
| 零件號 |
頻率 (MHz) |
包 |
供應 (VDC) |
產量 | 穩定性ppm(°C) |
相位噪聲 (dBc/Hz) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CVT25 |
13.000 19.200 26.000 38.400 40.000 |
2.5 x 3.2 mm SMD |
3.00 | 剪裁的正弦 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CXOH |
1.000 到 38.000 |
14針浸入式 通孔 |
3.30 5.00 |
HCMOS |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CXOH7 |
1.000 到 38.000 |
14針浸入式 通孔 |
3.30 5.00 |
HCMOS |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CXOHD4 |
1.000 到 38.880 |
12.2 x 18.6 mm SMD |
3.30 5.00 |
HCMOS |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CXOHV8 |
1.000 到 38.000 |
14針浸入式 通孔 |
3.30 5.00 |
HCMOS |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
CXOS |
8.000 至 30.000 |
14針浸入式 通孔 |
3.30 5.00 |
剪裁的正弦 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CXOSD4 |
8.000 至 30.000 |
12.2 x 18.6 mm SMD |
3.30 5.00 |
剪裁的正弦 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CXOSD6 |
8.000 至 30.000 |
9.6 x 11.4 mm SMD |
3.30 5.00 |
剪裁的正弦 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CVT32 |
10.000 至 30.000 |
3.2 x 5.0 mm SMD |
3.00 | 剪裁的正弦 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CXOH20 |
10.000 16.000 20.000 25.000 |
20.0 x 20.0 mm 通孔 |
5.00 | HCMOS |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CXOHD5 |
10.000 至 30.000 |
9.6 x 11.4 mm SMD |
3.30 5.00 |
HCMOS |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
CXOSD5 |
10.000 至 30.000 |
9.6 x 11.4 mm SMD |
3.30 5.00 |
剪裁的正弦 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
CVT20 |
19.200 26.000 |
2.0 x 2.5 mm SMD |
2.80 | 剪裁的正弦 |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Crystek Corporation, founded in 1958, is called Reske. Since the last century, Crystek Crystal has become an important supplier of frequency components in the international market. In order to better produce and control quartz crystal and quartz crystal oscillator products, Crystek Two departments responsible for frequency control have also been established. In the 21st century, Crystek Corporation has successfully developed a temperature-compensated crystal oscillator with superior temperature compensation performance and low phase noise characteristics, which has led to extensive discussions in the industry. All of its products are developed, designed, developed, produced, manufactured, packaged, shipped, and many other operations, all by Crystek.
Crystek's mass-produced TCXO temperature-compensated crystal Oscillators are available in both patch and plug-in versions. Currently, we are developing a small-size package, a high-performance solution. The smallest size that has been mass-produced is 2.5*2.0mm. The standard frequency tolerance is ±1.0 ppm, ±1.5 ppm, ±2.0 ppm, ±2.5 ppm, and the like. Basically, they belong to the low frequency series. The lowest frequency is 1.000MHz and the highest is 38.000MHz. The output mode is CLIPED SINE, HCMOS is optional. There are various operating temperature ranges, which are -10 °C~+50 °C, -30 °C~+75 °C, -40 °C~+85 °C, etc., in line with the requirements of high-end products.
