時鐘振蕩器C3390-7.372800專用于數字視頻應用

來源：金洛鑫瀏覽：- 發布日期：2023-05-18 16:43:35【大中小】

分享到：

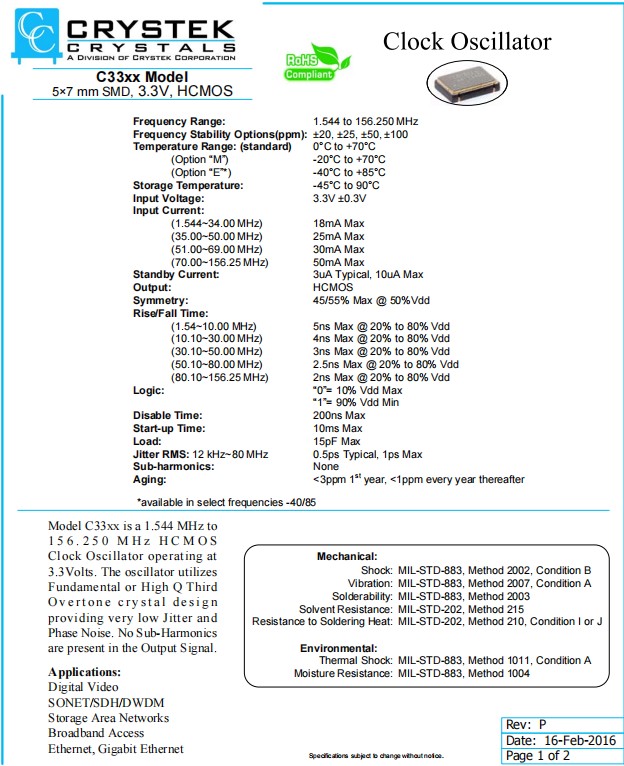

美國Crystek瑞斯克晶振C33xx系列，是一個小體積晶振尺寸7.0x5.0mm封裝，四腳貼片晶振，石英晶體振蕩器，有源晶振，石英晶振，頻率范圍1.544MHz到156.250MHz的HCMOS時鐘振蕩器，輸入電壓：3.3V±0.3V，頻率穩定性選項（ppm）：±20，±25，±50，±100。該有源晶振振蕩器利用基本或高Q第三Q，提供非常低的抖動和相位噪聲。輸出信號中沒有子諧波。應用范圍：數字視頻，聲波儀/SDH/DWDM，存儲區域網絡，寬帶接入，以太網，千兆以太網。時鐘振蕩器C3390-7.372800專用于數字視頻應用

進口晶振	品牌	型號	類型	頻率	頻率穩定度	工作溫度
CE3391-8.000	Crystek晶振	C33	XO (Standard)	8MHz	±25ppm	-40°C ~ 85°C
C3391-4.096	Crystek晶振	C33	XO (Standard)	4.096MHz	±25ppm	0°C ~ 70°C
C3390-1.544	Crystek晶振	C33	XO (Standard)	1.544MHz	±100ppm	0°C ~ 70°C
C3390-1.843200	Crystek晶振	C33	XO (Standard)	1.8432MHz	±100ppm	0°C ~ 70°C
C3390-10.000	Crystek晶振	C33	XO (Standard)	10MHz	±100ppm	0°C ~ 70°C
C3390-12.000	Crystek晶振	C33	XO (Standard)	12MHz	±100ppm	0°C ~ 70°C
C3390-12.288	Crystek晶振	C33	XO (Standard)	12.288MHz	±100ppm	0°C ~ 70°C
C3390-12.352	Crystek晶振	C33	XO (Standard)	12.352MHz	±100ppm	0°C ~ 70°C
C3390-14.318180	Crystek晶振	C33	XO (Standard)	14.31818MHz	±100ppm	0°C ~ 70°C
C3390-15.360	Crystek晶振	C33	XO (Standard)	15.36MHz	±100ppm	0°C ~ 70°C
C3390-16.000	Crystek晶振	C33	XO (Standard)	16MHz	±100ppm	0°C ~ 70°C
C3390-16.384	Crystek晶振	C33	XO (Standard)	16.384MHz	±100ppm	0°C ~ 70°C
C3390-18.432	Crystek晶振	C33	XO (Standard)	18.432MHz	±100ppm	0°C ~ 70°C
C3390-19.440	Crystek晶振	C33	XO (Standard)	19.44MHz	±100ppm	0°C ~ 70°C
C3390-2.048	Crystek晶振	C33	XO (Standard)	2.048MHz	±100ppm	0°C ~ 70°C
C3390-20.000	Crystek晶振	C33	XO (Standard)	20MHz	±100ppm	0°C ~ 70°C
C3390-20.480	Crystek晶振	C33	XO (Standard)	20.48MHz	±100ppm	0°C ~ 70°C
C3390-24.000	Crystek晶振	C33	XO (Standard)	24MHz	±100ppm	0°C ~ 70°C
C3390-24.576	Crystek晶振	C33	XO (Standard)	24.576MHz	±100ppm	0°C ~ 70°C
C3390-24.704	Crystek晶振	C33	XO (Standard)	24.704MHz	±100ppm	0°C ~ 70°C
C3390-25.000	Crystek晶振	C33	XO (Standard)	25MHz	±100ppm	0°C ~ 70°C
C3390-3.686400	Crystek晶振	C33	XO (Standard)	3.6864MHz	±100ppm	0°C ~ 70°C
C3390-30.000	Crystek晶振	C33	XO (Standard)	30MHz	±100ppm	0°C ~ 70°C
C3390-32.000	Crystek晶振	C33	XO (Standard)	32MHz	±100ppm	0°C ~ 70°C
C3390-32.768	Crystek晶振	C33	XO (Standard)	32.768MHz	±100ppm	0°C ~ 70°C
C3390-33.000	Crystek晶振	C33	XO (Standard)	33MHz	±100ppm	0°C ~ 70°C
C3390-33.333	Crystek晶振	C33	XO (Standard)	33.333MHz	±100ppm	0°C ~ 70°C
C3390-34.368	Crystek晶振	C33	XO (Standard)	34.368MHz	±100ppm	0°C ~ 70°C
C3390-35.000	Crystek晶振	C33	XO (Standard)	35MHz	±100ppm	0°C ~ 70°C
C3390-35.328	Crystek晶振	C33	XO (Standard)	35.328MHz	±100ppm	0°C ~ 70°C
C3390-4.000	Crystek晶振	C33	XO (Standard)	4MHz	±100ppm	0°C ~ 70°C
C3390-4.096	Crystek晶振	C33	XO (Standard)	4.096MHz	±100ppm	0°C ~ 70°C
C3390-40.000	Crystek晶振	C33	XO (Standard)	40MHz	±100ppm	0°C ~ 70°C
C3390-44.736	Crystek晶振	C33	XO (Standard)	44.736MHz	±100ppm	0°C ~ 70°C
C3390-45.000	Crystek晶振	C33	XO (Standard)	45MHz	±100ppm	0°C ~ 70°C
C3390-49.152	Crystek晶振	C33	XO (Standard)	49.152MHz	±100ppm	0°C ~ 70°C
C3390-50.000	Crystek晶振	C33	XO (Standard)	50MHz	±100ppm	0°C ~ 70°C
C3390-51.840	貼片晶振	C33	XO (Standard)	51.84MHz	±100ppm	0°C ~ 70°C
C3390-6.176	Crystek晶振	C33	XO (Standard)	6.176MHz	±100ppm	0°C ~ 70°C
C3390-7.372800	Crystek晶振	C33	XO (Standard)	7.3728MHz	±100ppm	0°C ~ 70°C
C3390-8.000	Crystek晶振	C33	XO (Standard)	8MHz	±100ppm	0°C ~ 70°C
C3390-8.064	Crystek晶振	C33	XO (Standard)	8.064MHz	±100ppm	0°C ~ 70°C
C3390-8.192	Crystek晶振	C33	XO (Standard)	8.192MHz	±100ppm	0°C ~ 70°C
C3392-1.544	Crystek晶振	C33	XO (Standard)	1.544MHz	±50ppm	0°C ~ 70°C
C3392-1.843200	Crystek晶振	C33	XO (Standard)	1.8432MHz	±50ppm	0°C ~ 70°C
C3392-10.000	Crystek晶振	C33	XO (Standard)	10MHz	±50ppm	0°C ~ 70°C
C3392-12.000	Crystek晶振	C33	XO (Standard)	12MHz	±50ppm	0°C ~ 70°C
C3392-12.288	Crystek晶振	C33	XO (Standard)	12.288MHz	±50ppm	0°C ~ 70°C
C3392-12.352	Crystek晶振	C33	XO (Standard)	12.352MHz	±50ppm	0°C ~ 70°C
C3392-14.318180	Crystek晶振	C33	XO (Standard)	14.31818MHz	±50ppm	0°C ~ 70°C

時鐘振蕩器C3390-7.372800專用于數字視頻應用，Crystek Corporation一直提供頻率產品，包括石英晶振、XOs(時鐘振蕩器)、TCXOs(溫度補償晶體振蕩器)、VCO(壓控振蕩器)和VCXOs(壓控晶體振蕩器)。Crystek運營著兩個致力于頻率控制的部門。Crystek Crystals致力于開發和制造使用石英諧振器的頻率產品。Crystek Microwave為微波行業開發頻率控制和支持產品。其它產品包括:PLL(鎖相環)頻率合成器、RedBox VCOs、RF同軸電纜組件、RF電纜連接器、散裝RF同軸電纜、RF功率檢波器、濾波器、衰減器、DC模塊、無源倍頻器、RFPRO(袖珍參考振蕩器)、連接器放大器、VCO評估板和看見基于時鐘振蕩器和VCO。

下一篇：LORA模塊低抖動專用晶振530FC125M000DG/125MHz/XO/7050mm/2.5V/SMD-6 上一篇：MEMS振蕩器DSC6102JI2A-100.0000T具有特殊的頻率穩定性能
