5G室外基站控制器專用晶振SG2016CAN編碼X1G004801003100

來源：金洛鑫瀏覽：- 發布日期：2022-09-15 16:10:36【大中小】

分享到：

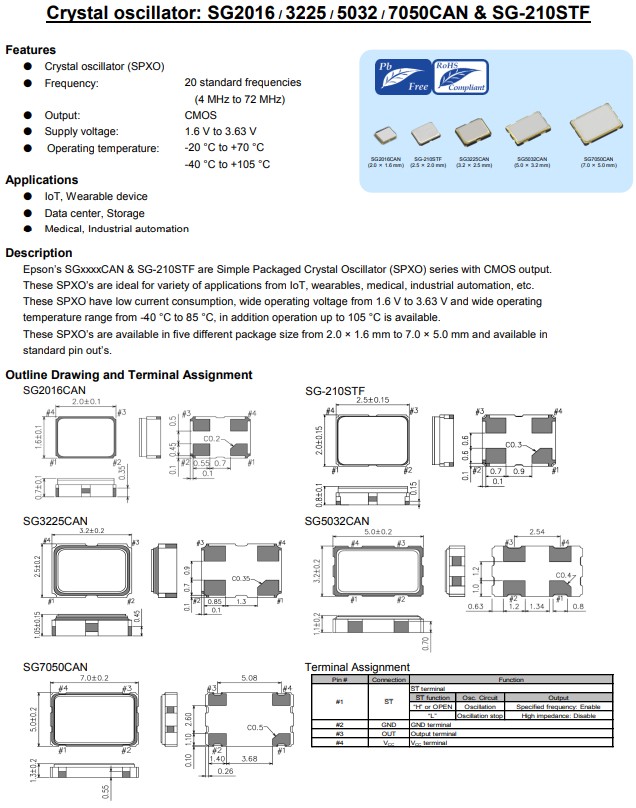

日本進口愛普生晶振SG2016CAN，是一款小體積晶振尺寸2.0x1.6mm晶體振蕩器(SPXO)，支持CMOS輸出電平，四腳貼片晶振，有源晶振，1.6V至3.63V的寬工作電壓和寬工作溫度范圍從-40℃到85℃，此外，最高工作溫度可達105℃。具有超小型，輕薄型，低抖動，低功耗，低損耗，低耗能，低電流消耗等特點，這些SPXO石英晶體振蕩器提供從2.0x1.6mm到7.0x5.0mm的五種不同封裝尺寸，并提供標準引腳排列。非常適合物聯網、可穿戴設備、醫療、工業自動化等各種應用。

5G室外基站控制器專用晶振SG2016CAN編碼X1G004801003100

產品編碼	型號	頻率	貼片晶振	輸出波	電源電壓	工作溫度
X1G004801000200	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801000300	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801000700	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001200	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001300	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001400	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801001800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002000	SG2016CAN	48.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801002100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002400	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801002600	SG2016CAN	33.333300MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801002700	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002800	SG2016CAN	50.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801002900	SG2016CAN	10.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801003000	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801003100	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003500	SG2016CAN	25.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801003600	SG2016CAN	40.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C

X1G004801003900	SG2016CAN	26.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004000	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004400	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801004500	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801004600	SG2016CAN	8.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801004900	SG2016CAN	4.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005000	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005100	SG2016CAN	12.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005200	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005300	SG2016CAN	12.288000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005400	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801005500	SG2016CAN	14.745600MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005600	SG2016CAN	16.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801005700	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801005800	SG2016CAN	20.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801005900	SG2016CAN	24.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-20 to 70°C
X1G004801006000	SG2016CAN	24.576000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006100	SG2016CAN	27.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006200	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C
X1G004801006300	SG2016CAN	32.000000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 105°C
X1G004801006400	SG2016CAN	33.330000MHz	2.00x1.60x0.70mm	CMOS	1.600 to 3.630V	-40 to 85°C

5G室外基站控制器專用晶振SG2016CAN編碼X1G004801003100
SG2016CAN有源晶振還具有超低功耗的優點。響應時間僅為3ms，上升/下降延遲時間為4ns。在工作頻率為20MHz，無負載情況時，工作電流可達1.8mA，待機狀態下的電流可達2.7μA。所以，在5G前傳光模塊方案中，如果需要MCU主頻更穩定，外置高溫、穩定性好的5G晶振時，EPSON公司推出的SG2016CAN晶振是較理想的選擇。常用型號是SG2016CAN 24.576000MHz 編碼X1G004801003100.工作溫度-40℃至105℃.
