SXT21410BB17-18.432M|2016mm|10pf|歐美松圖晶振,SXT21410BB17-18.432M晶振,2016mm晶振,負載10pf,工作溫度-10~70°C,歐美松圖晶振,SMD石英晶振,進口無源晶振,低老化晶振,USB接口晶振,辦公自動化晶振,音頻設備晶振,視覺藍牙應用晶振,小型通信設備晶振.
SXT21410BB17-18.432M|2016mm|10pf|歐美松圖晶振 特征
•±10 ppm /±10 ppm(公差/穩定)可用
•超小型封裝
•AT-Cut基本原理

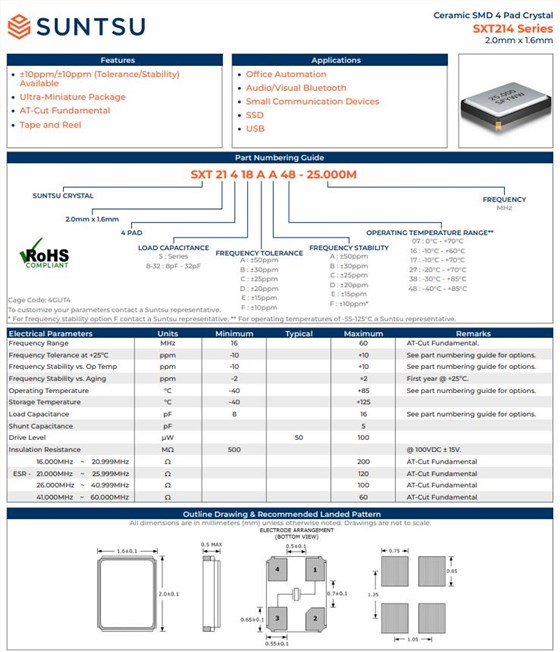

SXT21410BB17-18.432M|2016mm|10pf|歐美松圖晶振參數
項目
數值
附注
頻率
18.432MHz
AT-Cut Fundamental.
頻率公差@ +25°C
±30PPM
See part numbering guide for options.
頻率穩定性
±30PPM
See part numbering guide for options.
頻率穩定性與老化
±2ppm Max
First year @ +25ºC.
工作溫度
-10°Cto+70°C
See part numbering guide for options.
保存溫度
-40°Cto+125°C
并聯電容(C0)
5pF Max
負載電容 (CL)
10pF
See part numbering guide for options.
激勵功率
100μW Max
絕緣電阻
500MΩ
@ 100VDC ± 15V.
ESR-16.000MHz ~ 20.999MHz
100Ω
AT-Cut Fundamental.
SXT21410BB17-18.432M|2016mm|10pf|歐美松圖晶振尺寸圖
| SUNTSU晶振編碼 | 尺寸 | 負載 | 頻率公差 | 頻率穩定度 | 工作溫度 | 頻率 |
| SXT21410BB17-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 18.432M |
| SXT21410BB17-20.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 20.000M |
| SXT21410BB17-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 22.1184M |
| SXT21410BB17-24.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 24.000M |
| SXT21410BB17-24.576M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 24.576M |
| SXT21410BB17-25.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 25.000M |
| SXT21410BB17-26.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 26.000M |
| SXT21410BB17-27.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 27.000M |
| SXT21410BB17-27.120M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 27.120M |
| SXT21410BB17-30.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 30.000M |
| SXT21410BB17-32.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 32.000M |
| SXT21410BB17-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 37.400M |
| SXT21410BB17-38.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 10pF | ±30ppm | ±30ppm | -10°C - +70°C | 38.400M |
| SXT21411DB16-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +60°C | 18.432M |
| SXT21411DB16-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +60°C | 22.1184M |
| SXT21411DB16-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +60°C | 37.400M |
| SXT21411DB16-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +60°C | 50.000M |
| SXT21411DB17-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +70°C | 16.384M |
| SXT21411DB17-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +70°C | 18.432M |
| SXT21411DB17-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +70°C | 22.1184M |
| SXT21411DB17-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +70°C | 37.400M |
| SXT21411DB17-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -10°C - +70°C | 50.000M |
| SXT21411DB27-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -20°C - +70°C | 16.384M |
| SXT21411DB27-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -20°C - +70°C | 18.432M |
| SXT21411DB27-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -20°C - +70°C | 22.1184M |
| SXT21411DB27-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -20°C - +70°C | 37.400M |
| SXT21411DB27-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -20°C - +70°C | 50.000M |
| SXT21411DB38-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -30°C - +85°C | 16.384M |
| SXT21411DB38-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -30°C - +85°C | 18.432M |
| SXT21411DB38-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -30°C - +85°C | 22.1184M |
| SXT21411DB38-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -30°C - +85°C | 37.400M |
| SXT21411DB38-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -30°C - +85°C | 50.000M |
| SXT21411DB48-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -40°C - +85°C | 16.384M |
| SXT21411DB48-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -40°C - +85°C | 18.432M |
| SXT21411DB48-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -40°C - +85°C | 22.1184M |
| SXT21411DB48-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -40°C - +85°C | 37.400M |
| SXT21411DB48-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±30ppm | -40°C - +85°C | 50.000M |
| SXT21411DC07-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | 0°C - +70°C | 16.384M |
| SXT21411DC07-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | 0°C - +70°C | 18.432M |
| SXT21411DC07-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | 0°C - +70°C | 22.1184M |
| SXT21411DC07-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | 0°C - +70°C | 37.400M |
| SXT21411DC07-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | 0°C - +70°C | 50.000M |
| SXT21411DC16-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +60°C | 16.384M |
| SXT21411DC16-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +60°C | 18.432M |
| SXT21411DC16-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +60°C | 22.1184M |
| SXT21411DC16-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +60°C | 37.400M |
| SXT21411DC16-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +60°C | 50.000M |
| SXT21411DC17-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +70°C | 16.384M |
| SXT21411DC17-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +70°C | 18.432M |
| SXT21411DC17-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +70°C | 22.1184M |
| SXT21411DC17-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +70°C | 37.400M |
| SXT21411DC17-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -10°C - +70°C | 50.000M |
| SXT21411DC27-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -20°C - +70°C | 16.384M |
| SXT21411DC27-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -20°C - +70°C | 18.432M |
| SXT21411DC27-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -20°C - +70°C | 22.1184M |
| SXT21411DC27-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -20°C - +70°C | 37.400M |
| SXT21411DC27-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -20°C - +70°C | 50.000M |
| SXT21411DC38-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -30°C - +85°C | 16.384M |
| SXT21411DC38-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -30°C - +85°C | 18.432M |
| SXT21411DC38-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -30°C - +85°C | 22.1184M |
| SXT21411DC38-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -30°C - +85°C | 37.400M |
| SXT21411DC38-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -30°C - +85°C | 50.000M |
| SXT21411DC48-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -40°C - +85°C | 16.384M |
| SXT21411DC48-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -40°C - +85°C | 18.432M |
| SXT21411DC48-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -40°C - +85°C | 22.1184M |
| SXT21411DC48-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -40°C - +85°C | 37.400M |
| SXT21411DC48-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±25ppm | -40°C - +85°C | 50.000M |
| SXT21411DD07-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | 0°C - +70°C | 16.384M |
| SXT21411DD07-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | 0°C - +70°C | 18.432M |
| SXT21411DD07-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | 0°C - +70°C | 22.1184M |
| SXT21411DD07-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | 0°C - +70°C | 37.400M |
| SXT21411DD07-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | 0°C - +70°C | 50.000M |
| SXT21411DD16-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +60°C | 16.384M |
| SXT21411DD16-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +60°C | 18.432M |
| SXT21411DD16-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +60°C | 22.1184M |
| SXT21411DD16-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +60°C | 37.400M |
| SXT21411DD16-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +60°C | 50.000M |
| SXT21411DD17-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +70°C | 16.384M |
| SXT21411DD17-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +70°C | 18.432M |
| SXT21411DD17-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +70°C | 22.1184M |
| SXT21411DD17-37.400M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +70°C | 37.400M |
| SXT21411DD17-50.000M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -10°C - +70°C | 50.000M |
| SXT21411DD27-16.384M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -20°C - +70°C | 16.384M |
| SXT21411DD27-18.432M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -20°C - +70°C | 18.432M |
| SXT21411DD27-22.1184M | 2.0X1.6 SMD (4 PAD) CRYSTAL | 11pF | ±20ppm | ±20ppm | -20°C - +70°C | 22.1184M |
