MCO-5S晶振,125MHz,6G無線通信晶振,3225mm石英振蕩器,QuartzCom晶振,MCO-5S石英振蕩器,3225mm貼片晶振,有源晶振,小體積進口晶振,CMOS輸出晶振,頻率125MHz,電壓1.8V,負載15pF,工作溫度-40~85°C,頻率穩定性20ppm,抗沖擊晶振,抗振動晶振,6G無線通信晶振,智能手機晶振,平板電腦晶振,網絡終端晶振,藍牙模塊晶振.
MCO-5S晶振,125MHz,6G無線通信晶振,3225mm石英振蕩器特點：
●微型封裝：3.2×2.5mm
●應用:電信，無線通信
●頻率范圍為32.768 kHz至133 MHz
●高抗沖擊和振動

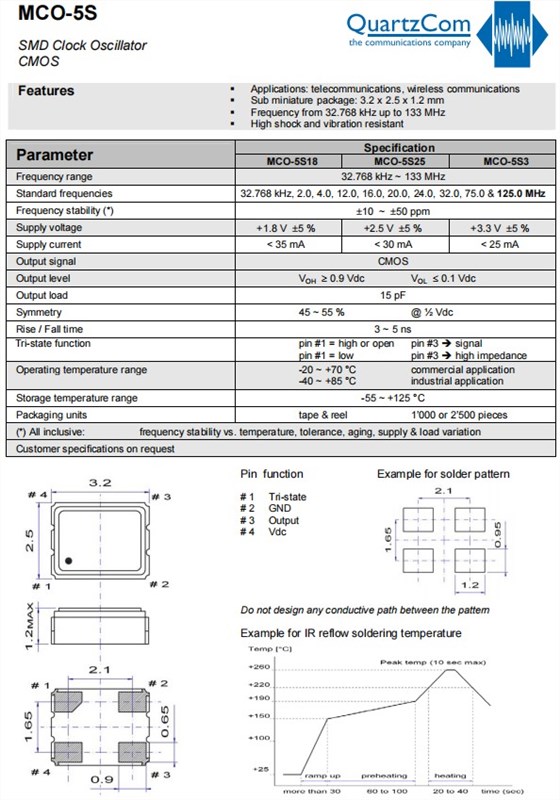

MCO-5S晶振,125MHz,6G無線通信晶振,3225mm石英振蕩器參數表
| 參數 | Specification | ||||||
| MCO-5S18 | MCO-5S25 | MCO-5S3 | |||||
| 頻率范圍 | 32.768KHz ~ 133 MHz | ||||||
| 標準頻率 |
32.768 kHz, 2.0, 4.0, 12.0, 16.0, 20.0, 24.0, 32.0, 75.0 & 125.0 MHz |
||||||
| 頻率穩定性 | ±10 ~±50 ppm | ||||||
| 電源電壓 | +1.8 V±5 % | +2.5 V±5 % | +3.3 V ±5 % | ||||
| 電源電流1-75MHz | < 35mA | < 30 mA | < 25 mA | ||||
| 輸出信號 | CMOS | ||||||
| 輸出水平 | VOH≥0.9 VdcVOL≤0.1 Vdc | ||||||
| 輸出負載 | 15 pF | ||||||
| 對稱性 | 45 ~ 55 %@ ½ Vdc | ||||||
| 上升/下降時間 | 3~ 5 ns | ||||||
| 三態函數 | pin #1 = high or openpin #3-signal | ||||||
| pin #1 = lowpin #3 - high impedance | |||||||
| 工作溫度范圍 | - 20 ~ +70 °Ccommercial applicatio | ||||||
| -40 ~ +85 °Cindustrial application | |||||||
| 儲存溫度范圍 | -55 ~ +125 °C | ||||||
| 包裝單位 | tape & reel1’000 or 2’500 piece | ||||||

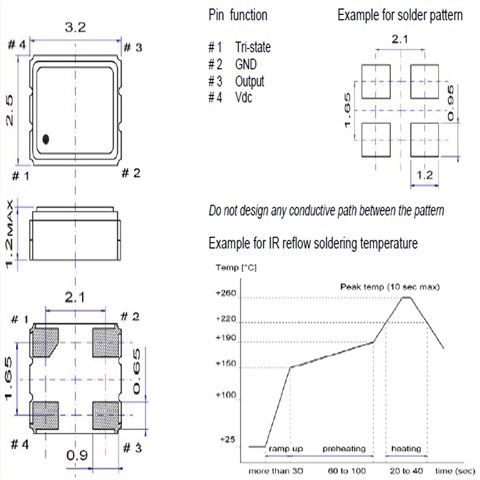

MCO-5S晶振,125MHz,6G無線通信晶振,3225mm石英振蕩器尺寸圖
