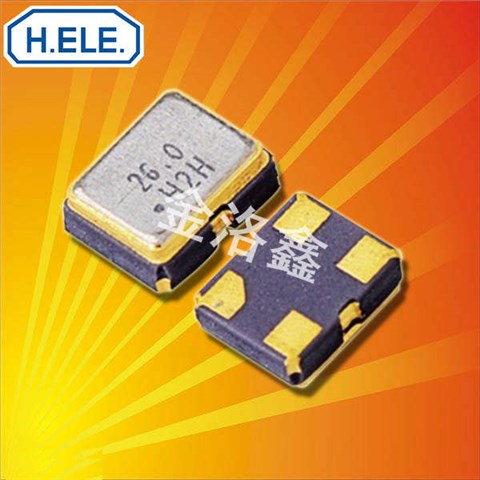

臺灣HELE晶振,X2C032000BA1HA-U,HSX211S貼片晶振,6G通信設備晶振,臺灣HELE晶振,HSX211S貼片晶振,2016mm小體積晶振,無源晶振,X2C032000BA1HA-U晶振,頻率32MHz,負載10pf,工作溫度-40~85°C,頻率穩定性10ppm,高精度晶振,高可靠性晶振,6G通信設備晶振,智能手機晶振,平板電腦晶振,藍牙模塊晶振.

臺灣HELE晶振,X2C032000BA1HA-U,HSX211S貼片晶振,6G通信設備晶振特點 :

1.超微型貼片型晶體器件

2.精度高，可靠性好，耐熱性好

3.為設計空間有限的智能手機應用、小型化無線模塊設備、RFID應用和其他消費類產品提供最佳解決方案

高端數碼電子諧振器,8045陶瓷殼2P晶振,NX8045GE晶振

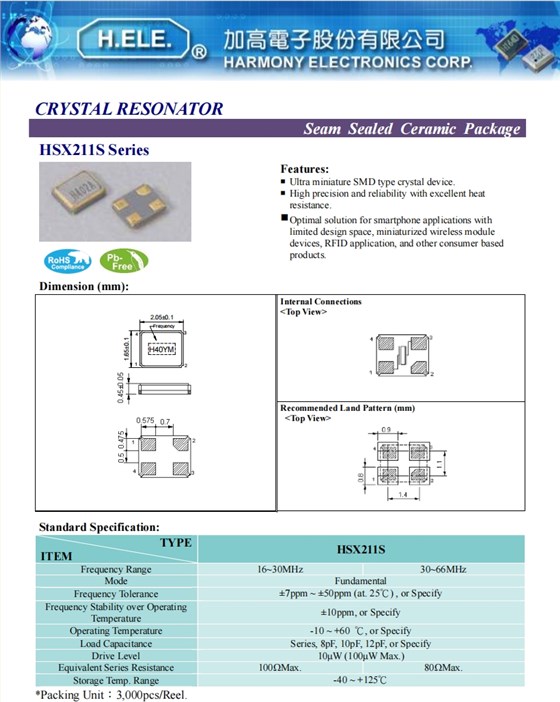

臺灣HELE晶振,X2C032000BA1HA-U,HSX211S貼片晶振,6G通信設備晶振參數

項目	符號	HSX211S
頻率	f0	32MHz
振動模式		Fundamental
頻率公差	△f/f0	±10ppm
溫度穩定性	TC	±10ppm
負載電容	CL	10pf
工作溫度	TOPR	－40℃～＋85℃
保存溫度	TSTR	－40℃～＋125℃
串聯阻力	R1	80Ω Max.
驅動級別	DL	100μW Max

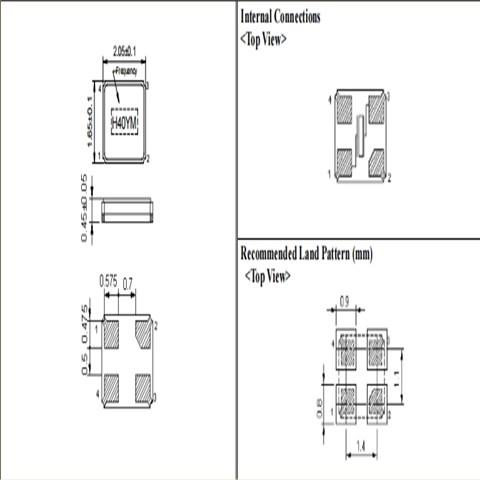

臺灣HELE晶振,X2C032000BA1HA-U,HSX211S貼片晶振,6G通信設備晶振尺寸圖

原廠編碼	制造廠家	型號	頻率	負載	頻率容差	頻率穩定性	工作溫度	尺寸
X2C032000BA1HA-U	HELE晶振	HSX211S	32MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C012000BA1HA-U	HELE晶振	HSX211S	12MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C013000BA1HA-U	HELE晶振	HSX211S	13MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C014000BA1HA-U	HELE晶振	HSX211S	14MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C015000BA1HA-U	HELE晶振	HSX211S	15MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C016000BA1HA-U	HELE晶振	HSX211S	16MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C017000BA1HA-U	HELE晶振	HSX211S	17MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C018000BA1HA-U	HELE晶振	HSX211S	18MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C019000BA1HA-U	HELE晶振	HSX211S	19MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C020000BA1HA-U	HELE晶振	HSX211S	20MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C021000BA1HA-U	HELE晶振	HSX211S	21MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C022000BA1HA-U	HELE晶振	HSX211S	22MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C023000BA1HA-U	HELE晶振	HSX211S	23MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C024000BA1HA-U	HELE晶振	HSX211S	24MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C025000BA1HA-U	HELE晶振	HSX211S	25MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C026000BA1HA-U	HELE晶振	HSX211S	26MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C027000BA1HA-U	HELE晶振	HSX211S	27MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C028000BA1HA-U	HELE晶振	HSX211S	28MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C029000BA1HA-U	HELE晶振	HSX211S	29MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C030000BA1HA-U	HELE晶振	HSX211S	30MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C031000BA1HA-U	HELE晶振	HSX211S	31MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C048000BA1HA-U	HELE晶振	HSX211S	48MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C033000BA1HA-U	HELE晶振	HSX211S	33MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C034000BA1HA-U	HELE晶振	HSX211S	34MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C035000BA1HA-U	HELE晶振	HSX211S	35MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C036000BA1HA-U	HELE晶振	HSX211S	36MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C037000BA1HA-U	HELE晶振	HSX211S	37MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C038000BA1HA-U	HELE晶振	HSX211S	38MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C039000BA1HA-U	HELE晶振	HSX211S	39MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C040000BA1HA-U	HELE晶振	HSX211S	40MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C041000BA1HA-U	HELE晶振	HSX211S	41MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C042000BA1HA-U	HELE晶振	HSX211S	42MHz	10pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
X2C037400BG1HA-U	HELE晶振	HSX211S	37.4MHz	16pF	±10PPM	±20PPM	-40~85°C	2.0×1.6mm
