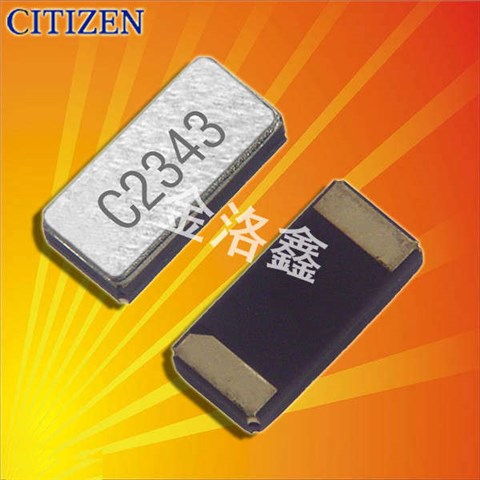

CM1610H32768DZFT-1610mm-32.768KHz-12.5pf,CM1610H32768DZFT晶振,日本西鐵城晶振,進口無源晶振,音叉型水晶振動子,兩腳貼片晶振,超小型晶振,1610mm晶振,32.768KHz晶振,負載12.5pf,耐高溫晶振,小型通信設備晶振,藍牙模塊晶振,無線網絡晶振,便攜式設備晶振.

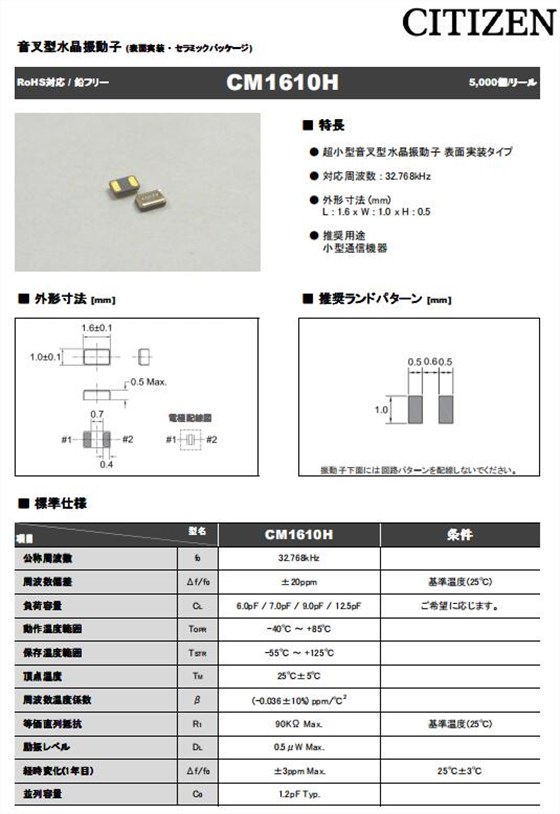

CM1610H32768DZFT-1610mm-32.768KHz-12.5pf參數
| 項目 | 符號 | CM1610H |
| 頻率 | f0 | 32.768KHz |
| 頻率公差 | △f/f0 | ±20ppm |
| 負載電容 | CL | 12.5pf |
| 工作溫度 | TOPR | －40℃～＋85℃ |
| 保存溫度 | TSTR | －55℃～＋125℃ |
| 點溫度 | TM | 25℃±5℃ |
| 溫度系數 | β | (-0.036±10%) ppm/℃ 2 |
| 串聯阻力 | R1 | 90KΩ Max. |
| 驅動級別 | DL | 0.5μW Max |
| 老化（第一年） | △f/f0 | ±3ppm Max. |
| 并聯電容 | C0 | 1.2pF Typ. |

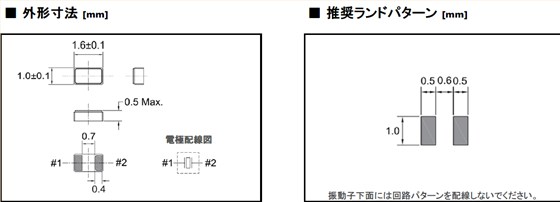

CM1610H32768DZFT-1610mm-32.768KHz-12.5pf尺寸圖
| 原廠編碼 | 生產廠家 | 型號 | 頻率 | 頻率偏差 | 負載電容 | 電阻 | 工作溫度 |
| CS325H-27.000MEDQ-UT | Citizen 晶振 | CS325H | 27MHz | ±10ppm | 10pF | 80 Ohm | -10°C ~ 60°C |
| CFS308-32.768KDZF | Citizen 晶振 | CFS308 | 32.768kHz | ±20ppm | 12.5pF | 35 kOhm | -10°C ~ 60°C |
| CM155-32.768KDZFTR | Citizen 晶振 | CM155 | 32.768kHz | ±20ppm | 12.5pF | 65 kOhm | -10°C ~ 60°C |
| CM155-32.768KDZFTR | Citizen 晶振 | CM155 | 32.768kHz | ±20ppm | 12.5pF | 65 kOhm | -10°C ~ 60°C |
| CFS308-32.768KDZF-UB | Citizen 晶振 | CFS308 | 32.768kHz | ±20ppm | 12.5pF | 35 kOhm | -10°C ~ 60°C |
| CFS30832.768KDZB | Citizen 晶振 | CFS308 | 32.768kHz | ±20ppm | 6pF | 35 kOhm | -10°C ~ 60°C |
| CFS30832.768KDZVB | Citizen 晶振 | CFS308 | 32.768kHz | ±20ppm | 8pF | 35 kOhm | -10°C ~ 60°C |
| CM1610H32768DZFT | Citizen 晶振 | CM1610H | 32.768kHz | ±20ppm | 12.5pF | 90 kOhms | -40°C ~ 85°C |
| CM1610H32768DZYT | Citizen 晶振 | CM1610H | 32.768kHz | ±20ppm | 7pF | 90 kOhms | -40°C ~ 85°C |
| CM1610H32768DZCT | Citizen 晶振 | CM1610H | 32.768kHz | ±20ppm | 9pF | 90 kOhms | -40°C ~ 85°C |
| CM1610H32768DZBT | Citizen 晶振 | CM1610H | 32.768kHz | ±20ppm | 6pF | 90 kOhms | -40°C ~ 85°C |
