CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA無源晶體,美國晶振品牌微晶CC4V-T1A,Micro Crystal,SMD晶振,陶瓷晶振,無源晶體,音叉晶體,型號CC4V-T1A,編碼CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA是一款陶瓷面貼片型的貼片晶體，采用高超的生產技術制作而成,具備良好的可靠性能,適合用于計量工業,汽車,衛生保健,醫療植入,嚴酷的環境下,車載專用等領域.
CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC音叉晶體的真空封裝技術：是指石英晶振在真空封裝區域內進行封裝.1.防止外界氣體進入組件體內受到污染和增加應力的產生；2.使晶振組件在真空下電阻減?。?.氣密性高.此技術為研發及生產超小型、超薄型石英晶振必須攻克的關鍵技術之一.CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA無源晶體,美國晶振品牌微晶CC4V-T1A
CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA晶振
|
32.768KHZ |
|||
|
+25°C對于超出標準的規格說明, |
|||
|
/ |
|||
|
12.5PF |
|||

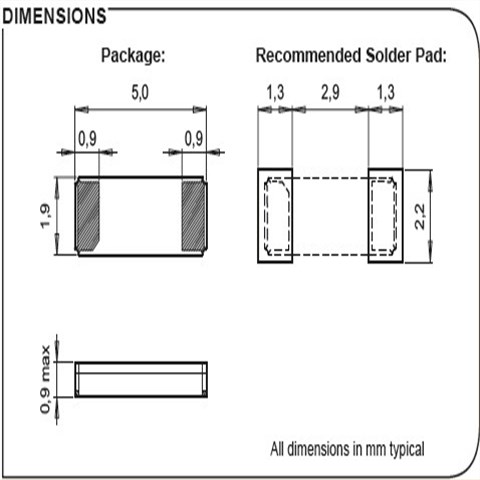

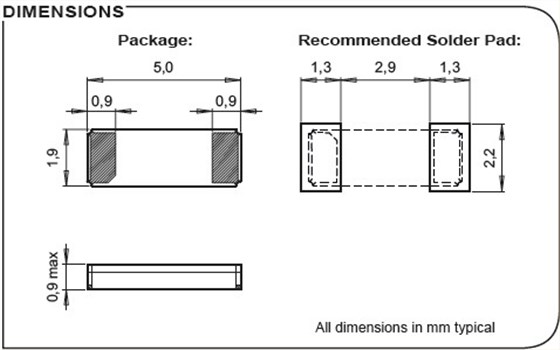

CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA無源晶體,美國晶振品牌微晶CC4V-T1A 尺寸圖
粘合劑:
請勿使用可能導致無源石英晶振所用的封裝材料,終端,組件,玻璃材料以及氣相沉積材料等受到腐蝕的膠粘劑。（比如,氯基膠粘劑可能腐蝕一個晶振的金屬“蓋”,從而破壞密封質量,降低性能。）鹵化合物:請勿在鹵素氣體環境下使用晶振。即使少量的鹵素氣體,比如在空氣中的氯氣內或封裝所用金屬部件內,都可能產生腐蝕。同時,請勿使用任何會釋放出鹵素氣體的樹脂。靜電:過高的靜電可能會損壞貼片晶振,請注意抗靜電條件。請為容器和封裝材料選擇導電材料。在處理的時候,請使用電焊槍和無高電壓泄漏的測量電路,并進行接地操作。CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA無源晶體,美國晶振品牌微晶CC4V-T1A
PCB設計指導:
(1) 在進口晶振理想情況下,機械蜂鳴器應安裝在一個獨立于壓電石英晶體器件的PCB板上。如果您安裝在同一個PCB板上,最好使用余量或切割PCB。當應用于PCB板本身或PCB板體內部時,機械振動程度有所不同。建議遵照內部板體特性。
(2) 在設計時請參考相應的推薦封裝。
(3) 在使用焊料助焊劑時,按JIS標準(JIS C 60068-2-20/IEC 60,068-2-20).來使用。
(4) 請按JIS標準(JIS Z 3282, Pb 含量 1000ppm, 0.1wt% 或更少)來使用無鉛焊料。
存儲事項:
(1) 在更高或更低溫度或高濕度環境下長時間保存SMD晶振時,會影響頻率穩定性或焊接性。請?jiān)谡囟群蜐穸拳h(huán)境下保存這些石英晶振產品,并在開封后盡可能進行安裝,以免長期儲藏。 正常溫度和濕度： 溫度：+15°C 至 +35°C,濕度 25 % RH 至 85 % RH（請參閱“測試點JIS C 60068-1 / IEC 60068-1的標準條件”章節內容）。
(2) 請仔細處理內外盒與卷帶。外部壓力會導致卷帶受到損壞。CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA無源晶體,美國晶振品牌微晶CC4V-T1A
| 制造商零件編號 | 制造商 | 描述 | 產品類型 | 頻率 | 頻率穩定性 | 容差 | 最小工作溫度 | 最大工作溫度 |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| OV-7605-C8-32.768kHz-20PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C | Crystals | 1.8432 MHz | 500 PPM | - 55 C | + 125 C | |
| OM-7604-C7-32.768kHz-20PPM-TB-QC | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+125C | Clock Oscillators | 32.768 kHz | - 40 C | + 125 C | ||
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals | 32.768 kHz | 10 PPM | - 40 C | + 85 C | |
| OV-7604-C7-32.768k-10PPM-TB-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-10 PPM -40/+125C AEC-Q200 | Clock Oscillators | 32.768 kHz | - 40 C | + 125 C | ||
| OV-7604-C7-32.768k-20PPM-TA-QA | Micro Crystal | 標準時鐘振蕩器 32.768 kHz +/-20 PPM -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1 MHz | 100 PPM | - 40 C | + 85 C | |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals | 153.6 kHz | 30 PPM | - 40 C | + 85 C | |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro Crystal | 晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C | Crystals | 307.2 kHz | 100 PPM | - 55 C | + 125 C | |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1.8432 MHz | 100 PPM | - 40 C | + 85 C | |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro Crystal | 晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C | Crystals | 1.8432 MHz | 100 PPM | - 55 C | + 125 C | |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro Crystal | 晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals | 40 kHz | 20 PPM | - 40 C | + 85 C | |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 125 C | |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C | Crystals | 32.768 kHz | 10 PPM | - 55 C | + 125 C | |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals | 32.768 kHz | 100 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | 瑞士Microcrystal晶振 | 晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C | Crystals | 1.8432 MHz | 500 PPM | - 40 C | + 85 C | |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro Crystal | 晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals | 1.2288 MHz | 100 PPM | - 40 C | + 85 C | |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro Crystal | 晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C | Crystals | 1.2288 MHz | 100 PPM | - 55 C | + 125 C | |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro Crystal | 晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals | 40 kHz | 30 PPM | - 55 C | + 125 C | |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro Crystal | 晶體 32.768 kHz 8.2 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals | 32.768 kHz | 20 PPM | - 55 C | + 125 C | |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals | 32.768 kHz | 20 PPM | - 40 C | + 85 C | |
| OV-7604-C7-32.768kHz-10PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器32.768 kHz +/-10 PPM -40/+85C | Clock Oscillators | 32.768 kHz | - 40 C | + 85 C | ||
| OV-0100-C7-100.000kHz-50PPM-TA-QC | Micro Crystal | 標準時鐘振蕩器 100.0 kHz +/-50 PPM -40/+85C | Clock Oscillators | 100 kHz | - 40 C | + 85 C | ||
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro Crystal | 晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C | Crystals | 307.2 kHz | 100 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C | Crystals | 32.768 kHz | 30 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals | 32.768 kHz | 30 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C | Crystals | 32.768 kHz | 15 PPM | - 40 C | + 85 C | |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro Crystal | 晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals | 32.768 kHz | 30 PPM | - 55 C | + 125 C |
