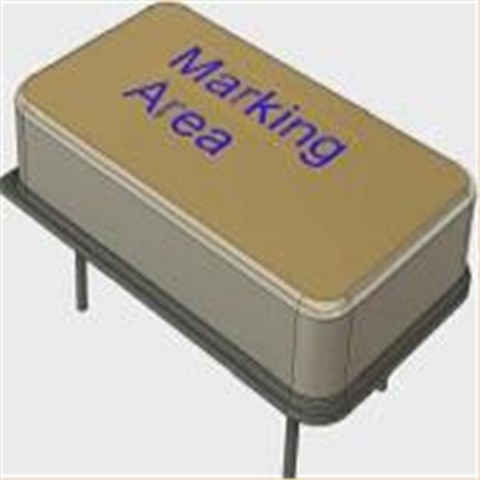

Anderson品牌,AE431晶振,長方形鐘振,6G室外基站晶振,Anderson品牌,進口晶振,AE431石英振蕩器,有源晶振,長方形鐘振,歐美晶振,四腳插件晶振,頻率0.032768~155.5200MHz,電壓5.0V,工作溫度-40~85°C,高品質晶振,無鉛環保晶振,抗沖擊晶振,6G室外基站晶振,微處理器時鐘晶振,測試與測量設備晶振,光收發器晶振.
Anderson品牌,AE431晶振,長方形鐘振,6G室外基站晶振規格表
Output Waveform(Symmetrical
__squarewave
25.000 MHz
80.000 MHz
32.768 KHz to 155.520 MHz Half Size 5.0 Volt Clock Oscillator
Parameters
Conditions
Minimum
Nominal
Maximum
Units
Center Frequency (fo)
0.032768
155.52000
MHz
Frequency Stability
±10
±100
ppm
Best Frequency Stability
-10°C to +70°C
-10
-10
ppm
-40°C to +85°C
-25
+25
-10°C to +70°C
-100
+100
-40°C to +85°C
-100
+100
Rise Times (RT) & Fall Times (FT)
5.0
10.0
nSec
Duty Cycle (@1.4V)
40
50
60
% (Percent)
HCMOS/TTL
Load
10 / 50
TTL/pf
Supply Voltage (Vcc)
4.5
5.0
5.5
Volts
Operating Temperature Range
-40
+85
oc/Degrees
Storage Temperature Range
-55
+125
Start-Up Time
10
mS
Low Level Output Voltage (Level 0:)
0.4
Vdd
High Level Output Voltage (Level 1:)
2.4
Input Current
20
mA
35
45
80.001 MHzto 155.520 MHz
50

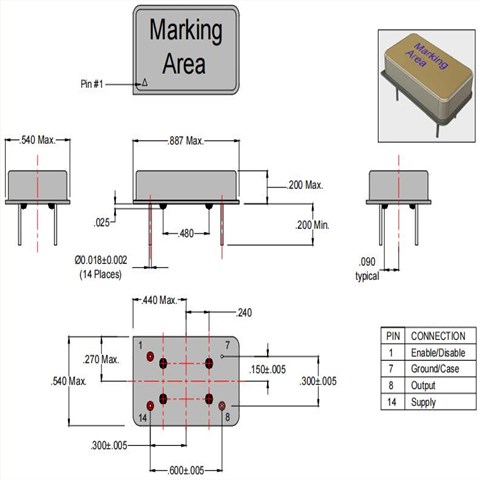

Anderson品牌,AE431晶振,長方形鐘振,6G室外基站晶振尺寸圖
